SQJQ910EL-T1_GE3 - Vishay

Description: MOSFET 100V Vds Dual N-Ch AEC-Q101 Qualified

Download SQJQ910EL-T1_GE3 Model

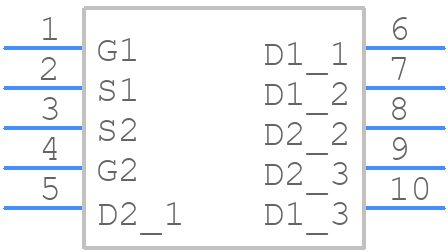

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SQJQ910EL-T1_GE3 - Vishay PCB footprint - Other - Other - PowerPAK 8 x 8L Dual
click to zoom
3D Models
SQJQ910EL-T1_GE3 - Vishay  - 3D model - Other - PowerPAK 8 x 8L Dual
click to zoom

SQJQ910EL-T1_GE3 Details

  • Manufacturer Part Number:

    SQJQ910EL-T1_GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.85

  • Avalanche Energy Rating (Eas):

    88 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    70 A

  • Drain-source On Resistance-Max:

    0.0114 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    43 pF

  • JESD-30 Code:

    R-PSSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    187 W

  • Pulsed Drain Current-Max (IDM):

    280 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    50 ns

  • Turn-on Time-Max (ton):

    19 ns
