SQM200N04-1m1L_GE3 footprint, schematic symbol and 3D model by Vishay

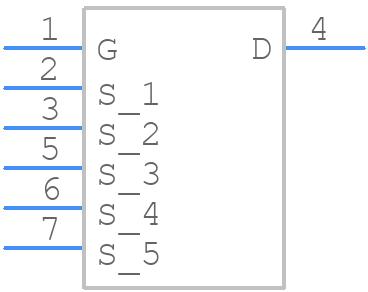

Symbol

click to zoom

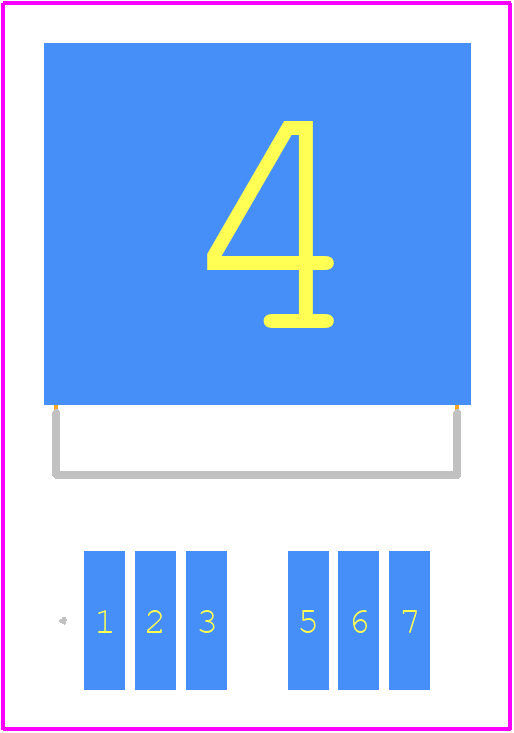

PCB Footprints

SQM200N04-1m1L_GE3 - Vishay PCB footprint - Other - Other - SQM200N04-1m1L_GE3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SQM200N04-1m1L_GE3
Part Number SQM200N04-1m1L_GE3
Manufacturer Vishay
Pin Count 7
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - SQM200N04-1m1L_GE3-1
Released Date Oct 25, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SQM200N04-1m1L_GE3 Details

Manufacturer Part Number:
SQM200N04-1M1L_GE3
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TO-263-7L, D2PAK-7/6
ECCN Code:
EAR99
Manufacturer:
Vishay Intertechnologies
YTEOL:
0
Avalanche Energy Rating (Eas):
500 mJ
Case Connection:
DRAIN
Configuration:
SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
40 V
Drain Current-Max (ID):
200 A
Drain-source On Resistance-Max:
0.0011 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
R-PSSO-G6
Number of Elements:
1
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Pulsed Drain Current-Max (IDM):
600 A
Reference Standard:
AEC-Q101
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Transistor Element Material:
SILICON

SQM200N04-1m1L_GE3 Frequently Asked Questions (FAQs)

The maximum operating temperature range for SQM200N04-1M1L_GE3 is -55°C to 175°C.
To ensure safe operating area (SOA) for SQM200N04-1M1L_GE3, follow the guidelines provided in the datasheet, including limiting the voltage and current within the specified ratings, and ensuring proper thermal management.
The recommended gate drive voltage for SQM200N04-1M1L_GE3 is between 4.5V and 10V, with a typical value of 5V.
To handle ESD protection for SQM200N04-1M1L_GE3, follow proper handling and storage procedures, and consider using ESD protection devices such as TVS diodes or ESD suppressors in the circuit design.
The typical turn-on time (ton) for SQM200N04-1M1L_GE3 is around 10ns, and the typical turn-off time (toff) is around 20ns.

Trust Checks

Community Provided

System Verified

Community Approved

SQM200N04-1m1L_GE3 Overview

Use the download button to access the SQM200N04-1m1L_GE3 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SQM20, or try a keyword search, such as Power Field-Effect Transistors
