SQP25AJB-27R - Yageo Group

Description: 27 Ohms ±5% 25W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Cement

Download SQP25AJB-27R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SQP25AJB-27R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

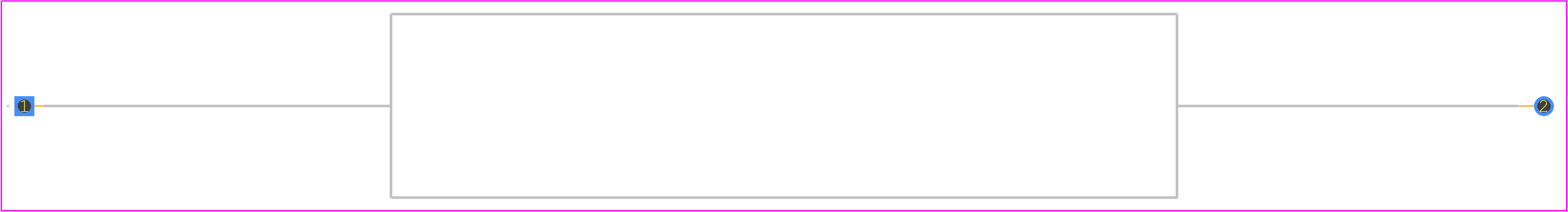

SQP25AJB-27R - Yageo Group PCB footprint - Other - Other - 14.00mm x 13.00mm x 60.00mm)
click to zoom

SQP25AJB-27R Details

  • Manufacturer Part Number:

    SQP25AJB-27R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.29.00.00

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    10

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Rectangular

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    275 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    13 mm

  • Package Length:

    60 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Axial

  • Package Width:

    14 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    25 W

  • Rated Temperature:

    25 °C

  • Resistance:

    27 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    1000 V

SQP25AJB-27R Frequently Asked Questions (FAQs)

  • The recommended land pattern for SQP25AJB-27R is a rectangular pad with a size of 1.5mm x 0.8mm, with a solder mask opening of 1.2mm x 0.5mm. It's recommended to follow the IPC-7351 standard for land pattern design.
  • Yes, SQP25AJB-27R is compatible with lead-free soldering. YAGEO Corporation uses a lead-free termination material that meets the requirements of RoHS and REACH directives.
  • The maximum operating temperature for SQP25AJB-27R is 125°C. However, it's recommended to derate the component's power rating at higher temperatures to ensure reliable operation.
  • Yes, SQP25AJB-27R is suitable for high-frequency applications up to 1 GHz. However, it's recommended to evaluate the component's performance in the specific application and consider factors such as self-resonance frequency and impedance.
  • Yes, SQP25AJB-27R is available in tape and reel packaging, which is suitable for automated assembly and surface mount technology (SMT) production lines.
