The recommended land pattern for SQP25AJB-51R can be found in the YAGEO Corporation's Chip Resistor Land Pattern document, which is available on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
Yes, SQP25AJB-51R is compatible with lead-free soldering. YAGEO Corporation's chip resistors are designed to meet the requirements of lead-free soldering, and they can withstand the higher temperatures associated with lead-free soldering processes.
The moisture sensitivity level (MSL) of SQP25AJB-51R is MSL 1, which means it can withstand a maximum of 30°C/60%RH for 168 hours. This means that the component can be stored in a dry environment and can be handled in a normal production environment without special precautions.
Yes, SQP25AJB-51R can be used in high-frequency applications up to 1 GHz. However, the component's performance may degrade at higher frequencies due to parasitic inductance and capacitance. It's recommended to consult with YAGEO Corporation's application notes and simulation tools to ensure the component meets the specific requirements of the application.
Yes, SQP25AJB-51R is RoHS and REACH compliant. YAGEO Corporation ensures that all its products meet the requirements of the European Union's RoHS and REACH directives, which restrict the use of certain hazardous substances in electronic components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SQP25AJB-51R Overview

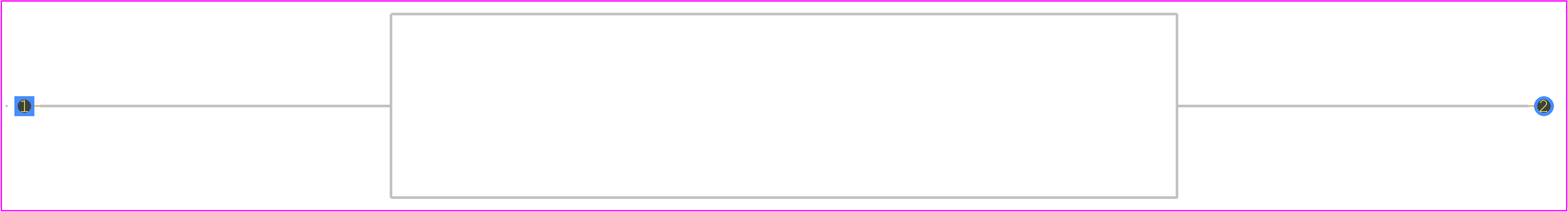

Use the download button to access the SQP25AJB-51R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SQP25,
or try a keyword search, such as Fixed Resistors
