SQZW2010RJ - TE Connectivity

Description: Body Features: Lead Type Radial-Leaded Pluggable | Configuration Features: Number of Resistors 1 | Dimensions: Passive Component Dimensions 60 x 15 x 13 MM | Electrical Characteristics: Resistance Value 10 OHM | Power Rating 20 WATT | Passive Component Tolerance 5 PCT | Resistance Class Up to 1kΩ | Packaging Features: Packaging Method Loose Piece - Box | Product Type Features: Resistor Type Power Resistor | Element Type Wire Wound | Termination Features: Number of Terminations 2 | Termination Area Base Mat

Download SQZW2010RJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SQZW2010RJ - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

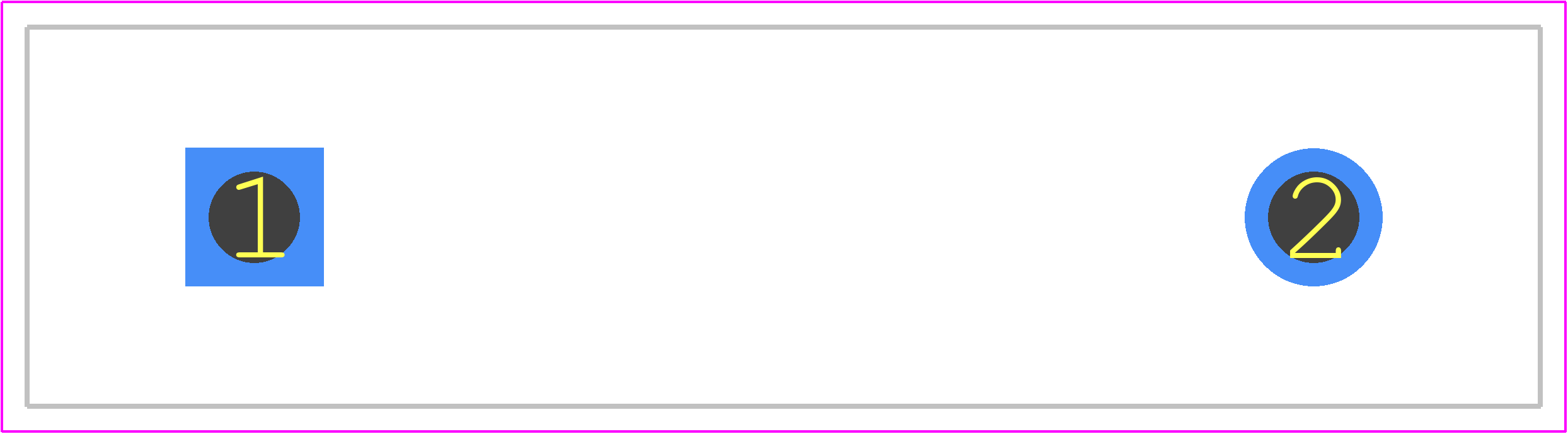

SQZW2010RJ - TE Connectivity PCB footprint - Other - Other - SQZW2010RJ
click to zoom
3D Models
SQZW2010RJ - TE Connectivity - 3D model - Other - SQZW2010RJ
click to zoom

SQZW2010RJ Details

  • Manufacturer Part Number:

    SQZW2010RJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Factory Lead Time:

    19 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Lead Spacing:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    250 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    13 mm

  • Package Length:

    60 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Package Width:

    15 mm

  • Packing Method:

    BULK, BOX

  • Physical Dimension:

    60mm x 15mm x 13mm

  • Rated Power Dissipation (P):

    20 W

  • Resistance:

    10 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Shape:

    SNAP-IN

  • Tolerance:

    5%
