SR1060L-TP - MCC

Description: Schottky Barrier Rectifiers

Download SR1060L-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

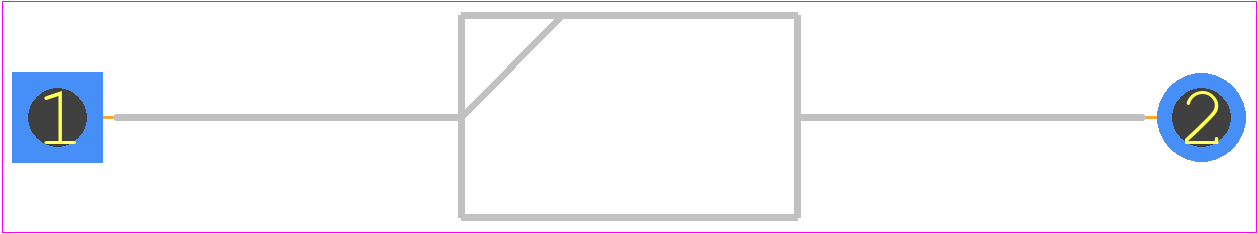

SR1060L-TP - MCC PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-201AD
click to zoom
3D Models
SR1060L-TP - MCC  - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-201AD
click to zoom

SR1060L-TP Details

  • Manufacturer Part Number:

    SR1060L-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    5.92

  • Application:

    GENERAL PURPOSE

  • Breakdown Voltage-Min:

    60 V

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.48 V

  • JEDEC-95 Code:

    DO-201AD

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    60 V

  • Reverse Current-Max:

    200 µA

  • Reverse Test Voltage:

    60 V

  • Surface Mount:

    NO

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Time@Peak Reflow Temperature-Max (s):

    10
