A good thermal design should include a solid ground plane, thermal vias under the IC, and a heat sink attached to the top of the package. The datasheet provides a recommended land pattern, but it's essential to follow good thermal design practices to ensure optimal performance.
The SR1504 can deliver high currents, so it's crucial to ensure the PCB traces and components can handle the current. Use thick traces, and consider using multiple layers or a dedicated power plane to reduce resistance and inductance. Also, make sure to use suitable components, such as high-current resistors and capacitors.
The datasheet recommends a 10uF ceramic capacitor, but the optimal value may vary depending on the specific application. A good starting point is to use a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin.
The SR1504 requires a bias voltage on the EN pin to enable the device. A voltage divider or a dedicated bias voltage source can be used to provide the required voltage. Ensure the bias voltage is stable and within the recommended range (1.2V to 5.5V) to guarantee proper operation.
The SR1504 has a maximum junction temperature of 150°C. In high-temperature environments, it's essential to ensure good thermal design and heat dissipation. Consider using a heat sink, thermal interface material, and a good airflow to keep the junction temperature within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SR1504 Overview

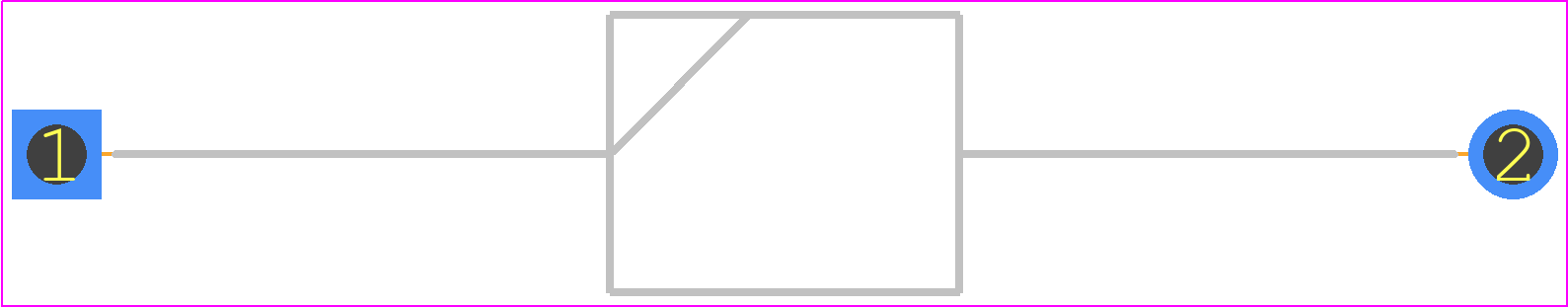

Use the download button to access the SR1504 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SR150,
or try a keyword search, such as Rectifier Diodes
