SR211E223MAA - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded 100V 0.022uF Z5U 20% Long Leads 1"min

Download SR211E223MAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SR211E223MAA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

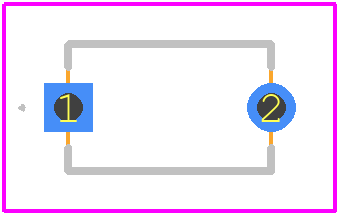

SR211E223MAA - Kyocera AVX PCB footprint - Other - Other - SR211E223MAA-3
click to zoom
3D Models
SR211E223MAA - Kyocera AVX - 3D model - Other - SR211E223MAA-3
click to zoom

SR211E223MAA Details

  • Manufacturer Part Number:

    SR211E223MAA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.022 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Custom Capabilities:

    Capacitance, Leads, Consult Factory

  • Dielectric Material:

    CERAMIC

  • Height:

    5.08 mm

  • JESD-609 Code:

    e3

  • Length:

    5.08 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    10 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    Z5U

  • Temperature Coefficient:

    -56/+22% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.175 mm

SR211E223MAA Frequently Asked Questions (FAQs)

  • The recommended land pattern for SR211E223MAA is available in the Kyocera AVX Components' land pattern document, which can be found on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the SR211E223MAA is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Consult with Kyocera AVX Components' application engineers for specific guidance.
  • The SR211E223MAA is designed for general-purpose use, but its high-frequency behavior may vary depending on the specific application. For high-frequency applications, consider using Kyocera AVX Components' high-frequency capacitors, such as the HF series, which are optimized for high-frequency performance.
  • Yes, the SR211E223MAA is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes.
  • The typical ESL of the SR211E223MAA is not specified in the datasheet, but it can be estimated to be around 1-2 nH based on the component's physical characteristics and industry standards. However, for precise ESL values, consult with Kyocera AVX Components' application engineers or request a custom characterization report.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SR211E223MAA Overview

Use the download button to access the SR211E223MAA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SR211, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
