SR215C103KAA - Kyocera AVX

Description: AVX - SR215C103KAA - CERAMIC CAPACITOR 0.01UF, 50V, X7R, 10%, RADIAL

Download SR215C103KAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SR215C103KAA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

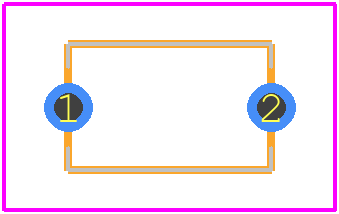

SR215C103KAA - Kyocera AVX PCB footprint - Other - Other - SR21(5.08x3.175x5.08)_1
click to zoom
3D Models
SR215C103KAA - Kyocera AVX - 3D model - Other - SR21(5.08x3.175x5.08)_1
click to zoom

SR215C103KAA Details

  • Manufacturer Part Number:

    SR215C103KAA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.01 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    7.62 mm

  • JESD-609 Code:

    e3

  • Length:

    5.08 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Size Code:

    2012

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.175 mm

SR215C103KAA Frequently Asked Questions (FAQs)

  • The recommended land pattern for SR215C103KAA is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • The voltage derating of SR215C103KAA is typically done by reducing the maximum voltage rating by 10-20% to ensure reliable operation. For example, if the capacitor is rated for 50V, it's recommended to limit the voltage to 40-45V in the application.
  • The ESR of SR215C103KAA is typically around 0.05 ohms, but it can vary depending on the frequency and operating conditions. It's recommended to consult the datasheet or contact the manufacturer for more information.
  • Yes, SR215C103KAA is compatible with lead-free soldering processes, including RoHS and WEEE compliant processes.
  • The MSL of SR215C103KAA is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SR215C103KAA Overview

Use the download button to access the SR215C103KAA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SR215, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
