SR215C473KAA - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded 50V 0.047uF 10% X7R

Download SR215C473KAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SR215C473KAA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

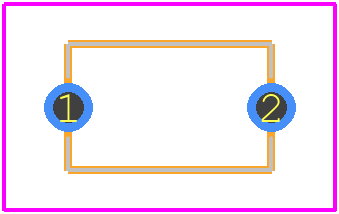

SR215C473KAA - Kyocera AVX PCB footprint - Other - Other - SR215C473KAA-4
click to zoom
3D Models
SR215C473KAA - Kyocera AVX - 3D model - Other - SR215C473KAA-4
click to zoom

SR215C473KAA Details

  • Manufacturer Part Number:

    SR215C473KAA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.047 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    7.62 mm

  • JESD-609 Code:

    e3

  • Length:

    5.08 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Size Code:

    2012

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.175 mm

SR215C473KAA Frequently Asked Questions (FAQs)

  • The recommended land pattern for SR215C473KAA is available in the Kyocera AVX Components' land pattern document, which can be found on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the datasheet specifies an operating temperature range of -55°C to 125°C, the SR215C473KAA is designed to perform well in high-temperature environments. However, it's recommended to derate the component's capacitance and voltage ratings according to the temperature derating curve provided in the datasheet or by consulting with Kyocera AVX Components' application engineers.
  • Yes, the SR215C473KAA is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes. However, it's recommended to follow the recommended soldering profile and guidelines provided by Kyocera AVX Components to ensure optimal reliability.
  • The ESR of the SR215C473KAA is not explicitly stated in the datasheet. However, Kyocera AVX Components provides ESR data for their capacitors in their Spice models or by consulting with their application engineers. The ESR value can also be estimated using the impedance vs. frequency curve provided in the datasheet.
  • While the SR215C473KAA meets the requirements of the AEC-Q200 standard, it's essential to consult with Kyocera AVX Components' application engineers to ensure that the component meets the specific requirements of the automotive application. Additionally, the component's performance and reliability should be validated through rigorous testing and qualification processes.
