SR215C682KAR - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded 50V 6800pF X7R RoHS Long Leads 10% N 581-SR215C682K

Download SR215C682KAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SR215C682KAR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

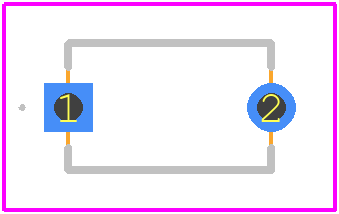

SR215C682KAR - Kyocera AVX PCB footprint - Other - Other - SR215C682KAR-5
click to zoom
3D Models
SR215C682KAR - Kyocera AVX - 3D model - Other - SR215C682KAR-5
click to zoom

SR215C682KAR Details

  • Manufacturer Part Number:

    SR215C682KAR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.38

  • Capacitance:

    0.0068 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    5.08 mm

  • JESD-609 Code:

    e3

  • Length:

    5.08 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.175 mm

SR215C682KAR Frequently Asked Questions (FAQs)

  • The recommended land pattern for SR215C682KAR can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • To prevent damage during assembly, it is recommended to handle the SR215C682KAR by the edges, avoiding touching the component's leads or body. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage. Additionally, follow the manufacturer's recommended storage and handling procedures to prevent mechanical damage or contamination.
  • While the datasheet provides the typical operating temperature range, the maximum operating temperature range for SR215C682KAR is typically specified as -55°C to +125°C. However, it's essential to note that operating the component outside the recommended temperature range may affect its performance, reliability, or lifespan.
  • While the SR215C682KAR is designed to be a reliable component, it may not be suitable for high-vibration environments without proper consideration. The component's mechanical stress limits and vibration resistance should be evaluated, and additional measures such as potting or conformal coating may be necessary to ensure reliability in high-vibration applications.
  • The equivalent series resistance (ESR) of SR215C682KAR can be determined by measuring the impedance of the component at high frequencies (typically above 100 kHz) using an impedance analyzer or a vector network analyzer. The ESR value can also be estimated using the component's datasheet values and formulas provided in application notes or technical papers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SR215C682KAR Overview

Use the download button to access the SR215C682KAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SR215, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
