SR4D4005 - TE Connectivity

Description: Body Features: Product Weight 30 G | Product Weight 1.058 OZ | Contact Features: Contact Arrangement 2 Form A (NO) + 2 Form B (NC) | Contact Special Features Force Guided Contacts | Contact Material AgSnO2 | Contact Number of Poles 4 | Contact Current Class 5 – 10 AMP | Contact Current Rating (Max) 8 AMP | Dimensions: Insulation Clearance Between Contact & Coil .394 INCH | Insulation Clearance Class 8 MM | Width Class (Mechanical) 12 – 16 MM | Product Length 1.57 INCH | Length Class (Mechanical) 35 –

Download SR4D4005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

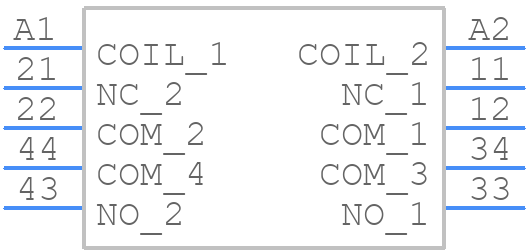

SR4D4005 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

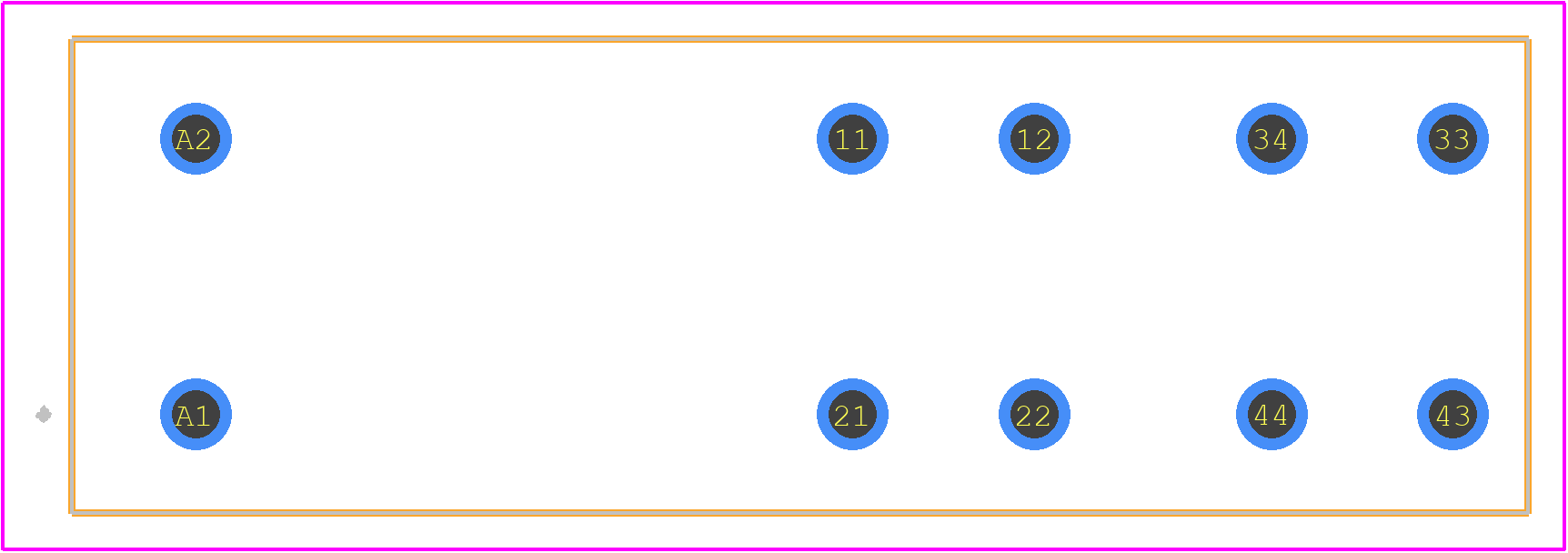

SR4D4005 - TE Connectivity PCB footprint - Other - Other - SR4D4005-1
click to zoom
3D Models
SR4D4005 - TE Connectivity - 3D model - Other - SR4D4005-1
click to zoom

SR4D4005 Details

  • Manufacturer Part Number:

    SR4D4005

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    13 mm

  • Body Height:

    16.5 mm

  • Body Length or Diameter:

    40 mm

  • Coil Current(AC)-Max:

    0.161 A

  • Coil Current(DC)-Max:

    0.161 A

  • Coil Operate Voltage(DC):

    3.8 V

  • Coil Power:

    806 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    31 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil Voltage-Nom:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    8A@400VAC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(AC)-Max:

    400 V

  • Dielectric Strength Between Coil and Contacts:

    4000 Vrms

  • Dielectric Strength Between Open Contacts:

    1500 Vrms

  • End Contact Material:

    SILVER TIN OXIDE

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    39.87mm x 12.95mm x 16mm

  • Reference Standard:

    UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    4PST

  • Relay Type:

    SAFETY RELAY

  • Sealing:

    RT3

  • Surface Mount:

    NO

  • Terminal Length:

    0.0032994665989331978 inch

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    30 g

SR4D4005 Frequently Asked Questions (FAQs)

  • TE Connectivity recommends a 4-layer PCB with a solid ground plane and a separate power plane to minimize noise and ensure optimal performance. A minimum of 50 mils of clearance around the component is also recommended.
  • To ensure reliable connections, TE Connectivity recommends using a soldering iron with a temperature of 250°C to 270°C, and a solder with a melting point of 180°C to 200°C. Additionally, the component should be handled by the edges to prevent damage to the pins.
  • The SR4D4005 is rated for operation from -40°C to 125°C, but it's recommended to derate the component by 1°C per 1000 feet above sea level to ensure reliable operation.
  • Yes, the SR4D4005 is designed to withstand high-vibration environments. However, it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent damage.
  • To troubleshoot issues with the SR4D4005, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, check for any signs of physical damage or overheating. If the issue persists, consult TE Connectivity's application notes and technical support resources for further guidance.
