SR4M4012 - TE Connectivity

Description: Body Features: Product Weight 30 G | Product Weight 1.058 OZ | Contact Features: Contact Number of Poles 4 | Contact Material AgSnO2 | Contact Current Rating (Max) 8 AMP | Contact Current Class 5 – 10 AMP | Contact Special Features Force Guided Contacts | Contact Arrangement 3 Form A (NO) + 1 Form B (NC) | Dimensions: Product Length 1.57 INCH | Product Width 13 MM | Height Class (Mechanical) 16 – 20 MM | Product Height 16.5 MM | Insulation Clearance Class 8 MM | Insulation Clearance Between Contact & Co

Download SR4M4012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

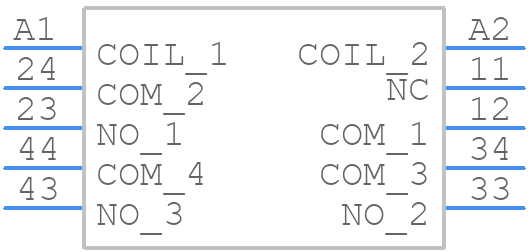

Symbol
SR4M4012 - TE Connectivity - PCB symbol
click to zoom

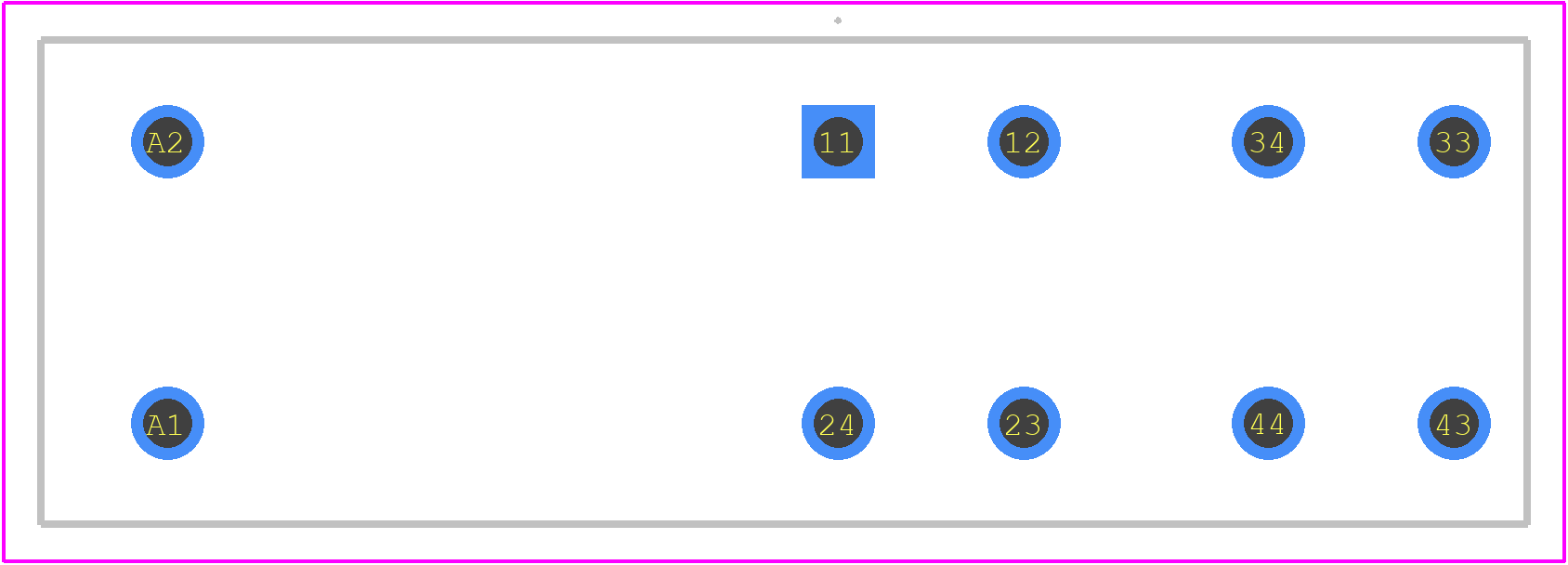

PCB Footprints
SR4M4012 - TE Connectivity PCB footprint - Other - Other - SR4M4012-1
click to zoom
3D Models
SR4M4012 - TE Connectivity - 3D model - Other - SR4M4012-1
click to zoom

SR4M4012 Details

  • Manufacturer Part Number:

    SR4M4012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Austria

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    33 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    13 mm

  • Body Height:

    16.5 mm

  • Body Length or Diameter:

    40 mm

  • Coil Current(AC)-Max:

    0.067 A

  • Coil Current(DC)-Max:

    0.067 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    800 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    180 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    8A@400VAC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(AC)-Max:

    400 V

  • Dielectric Strength Between Coil and Contacts:

    4000 Vrms

  • Dielectric Strength Between Open Contacts:

    1500 Vrms

  • End Contact Material:

    SILVER TIN OXIDE

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    39.87mm x 12.95mm x 16mm

  • Reference Standard:

    UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    4PST

  • Relay Type:

    SAFETY RELAY

  • Sealing:

    RT3

  • Surface Mount:

    NO

  • Terminal Length:

    0.0032994665989331978 inch

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    30 g

SR4M4012 Frequently Asked Questions (FAQs)

  • TE Connectivity recommends a 4-layer PCB with a solid ground plane and a separate power plane for the module. The PCB should also have a low-ESR capacitor (e.g., 10uF) connected between the power pins (VIN and GND) to filter out noise.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the module's output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the module and consider using a heat sink if necessary.
  • TE Connectivity recommends keeping the input and output cable lengths as short as possible, but not exceeding 10 inches (25 cm) to minimize signal degradation and electromagnetic interference (EMI).
  • Yes, the SR4M4012 can be used in a redundant or parallel configuration to achieve higher power output. However, it is essential to ensure that the modules are synchronized and properly configured to avoid oscillations and instability.
  • The SR4M4012 is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, ensure proper PCB layout, use shielded cables, and consider adding EMI filters or shielding to the module and surrounding components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SR4M4012 Overview

Use the download button to access the SR4M4012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SR4M4, or try a keyword search, such as Special Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
