SR6M4024 - TE Connectivity

Description: Body Features: Product Weight 30 G | Product Weight 1.058 OZ | Contact Features: Contact Number of Poles 4 | Contact Material AgSnO2 | Contact Arrangement 3 Form A (NO) + 1 Form B (NC) | Contact Special Features Force Guided Contacts | Contact Current Rating (Max) 8 AMP | Contact Current Class 5 – 10 AMP | Dimensions: Product Width .649 INCH | Width Class (Mechanical) 16 – 20 MM | Insulation Clearance Between Contact & Coil .217 INCH | Product Length 2.16 INCH | Product Height .649 INCH | Length Class (

Download SR6M4024 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

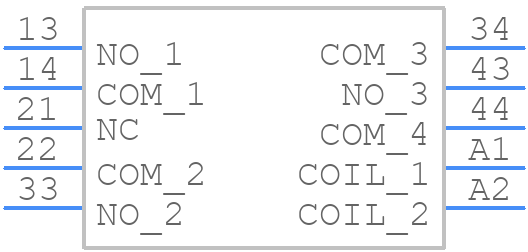

SR6M4024 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

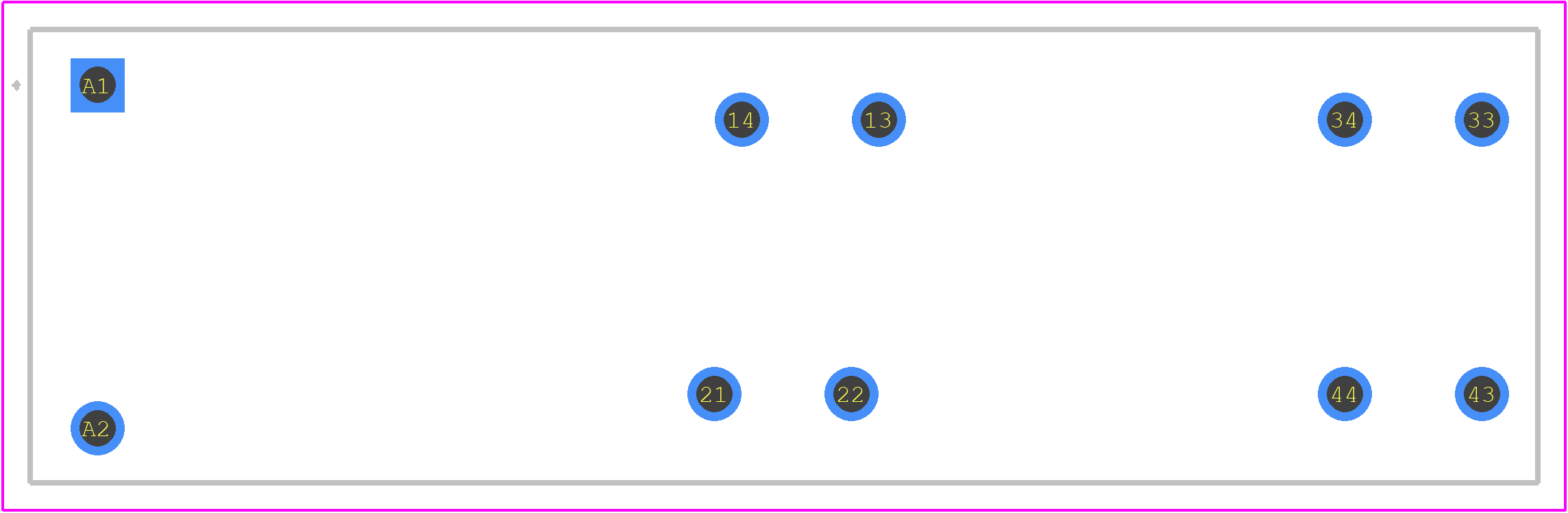

SR6M4024 - TE Connectivity PCB footprint - Other - Other - SR6M4024-1
click to zoom
3D Models
SR6M4024 - TE Connectivity - 3D model - Other - SR6M4024-1
click to zoom

SR6M4024 Details

  • Manufacturer Part Number:

    SR6M4024

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    33 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    16.5 mm

  • Body Height:

    16.5 mm

  • Body Length or Diameter:

    55 mm

  • Coil Current(AC)-Max:

    0.05 A

  • Coil Current(DC)-Max:

    0.05 A

  • Coil Operate Voltage(DC):

    18 V

  • Coil Power:

    1200 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    480 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    8A@400VAC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC

  • Dielectric Strength Between Coil and Contacts:

    4000 Vrms

  • Dielectric Strength Between Open Contacts:

    1500 Vrms

  • End Contact Material:

    SILVER TIN OXIDE

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    55mm x 16.5mm x 16.5mm

  • Reference Standard:

    CQC; TUV; UL; VDE

  • Relay Function:

    4PST

  • Surface Mount:

    NO

  • Terminal Length:

    0.0032994665989331978 inch

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    30 g

SR6M4024 Frequently Asked Questions (FAQs)

  • TE Connectivity recommends a 4-layer PCB with a solid ground plane and a separate power plane for the SR6M4024. The device should be placed near the edge of the board to minimize signal reflections. A minimum of 10 mils of clearance around the device is recommended to ensure proper heat dissipation.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal conductivity between the device and the PCB, and consider using a heat sink or thermal interface material if necessary.
  • TE Connectivity recommends soldering the SR6M4024 using a reflow soldering process with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. The device should be soldered using a solder with a melting point of 217°C (423°F) or higher.
  • To troubleshoot issues with the SR6M4024, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to verify the input and output signals, and check for any signs of signal distortion or noise.
  • Yes, the SR6M4024 is a high-frequency device and requires proper EMI/EMC design considerations. Ensure that the device is placed in a shielded area of the PCB, and use EMI filters or shielding to minimize electromagnetic radiation. Follow proper PCB layout and grounding techniques to minimize electromagnetic interference.
