A good PCB layout for the SRDA05-4 involves keeping the RF traces as short as possible, using a solid ground plane, and placing the device near the antenna. It's also recommended to use a 50-ohm microstrip line to match the impedance of the device.
The choice of antenna depends on the frequency band, operating environment, and size constraints of your design. A quarter-wavelength monopole antenna or a chip antenna are good options for the SRDA05-4. Make sure to simulate and test the antenna performance to ensure optimal results.
The SRDA05-4 is designed to handle a maximum transmit power of +20 dBm. Exceeding this power may damage the device or affect its performance.
The SRDA05-4 has a built-in shutdown mode that can be controlled through the EN pin. By pulling the EN pin low, the device enters a low-power mode, reducing the current consumption to less than 1 uA. You can also use the SPI interface to configure the device for low-power operation.
The SRDA05-4 is designed to operate over a temperature range of -40°C to +85°C. Operating the device outside this range may affect its performance or reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRDA05-4 Overview

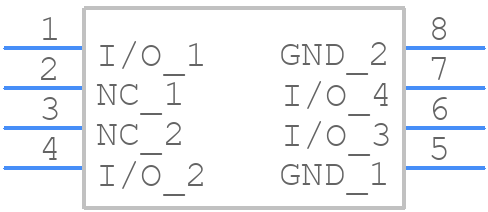

Use the download button to access the SRDA05-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRDA0,
or try a keyword search, such as Transient Suppressors
