SRJ101050010 - Summit Electronics

Description: RJ45 Connector with 2.5G/5G Base-T Integrated Magnetics 0°C to +70°C,Through-hole UP 8Port LED configuration Green/Yellow

Download SRJ101050010 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SRJ101050010 model

Email notifications will be applied after download.

Send part feedback

Symbol

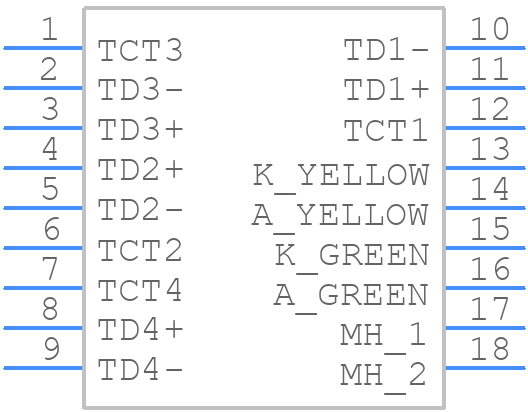

SRJ101050010 - Summit Electronics - PCB symbol

PCB Footprints

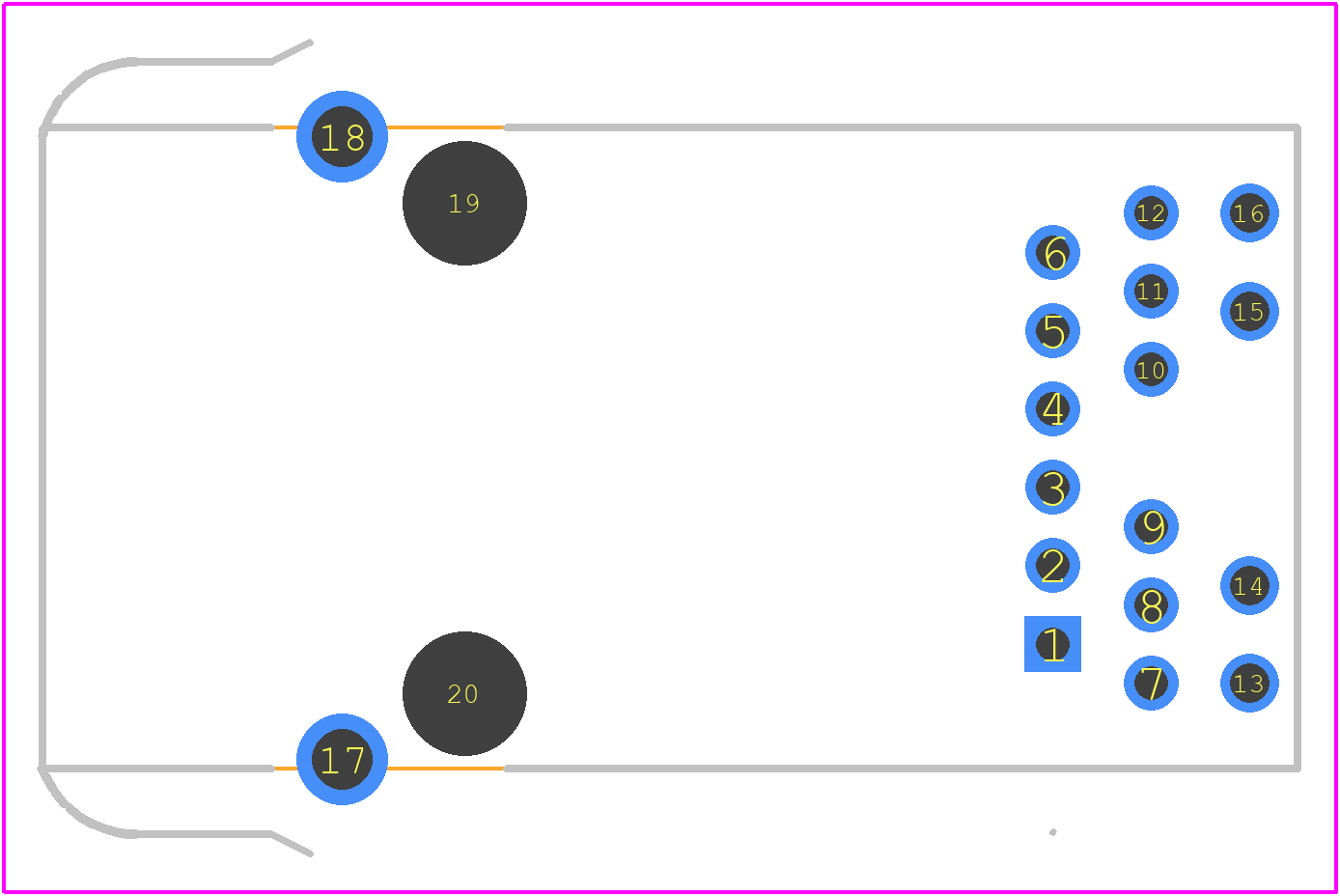

SRJ101050010 - Summit Electronics PCB footprint - Other - Other - SRJ101050010-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SRJ101050010
Part Number SRJ101050010
Manufacturer Summit Electronics
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - SRJ101050010-2
Released Date May 23, 2026
Last Modified Date Jun 10, 2026 5:51 PM UTC
Pinout / Pin List Click Here (Member Only)

SRJ101050010 Details

Manufacturer Part Number:
SRJ101050010
Manufacturer:
(Of No Interest)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SRJ101050010 Overview

Use the download button to access the SRJ101050010 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SRJ10, or try a keyword search, such as Rotary Switches
