SRJ101252010 - Summit Electronics

Description: RJ45 1x1 port + dual USB 3.0 2.5G, Magnetics / NO EMI tabs LED Green/Yellow

Download SRJ101252010 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SRJ101252010 model

Email notifications will be applied after download.

Send part feedback

Symbol

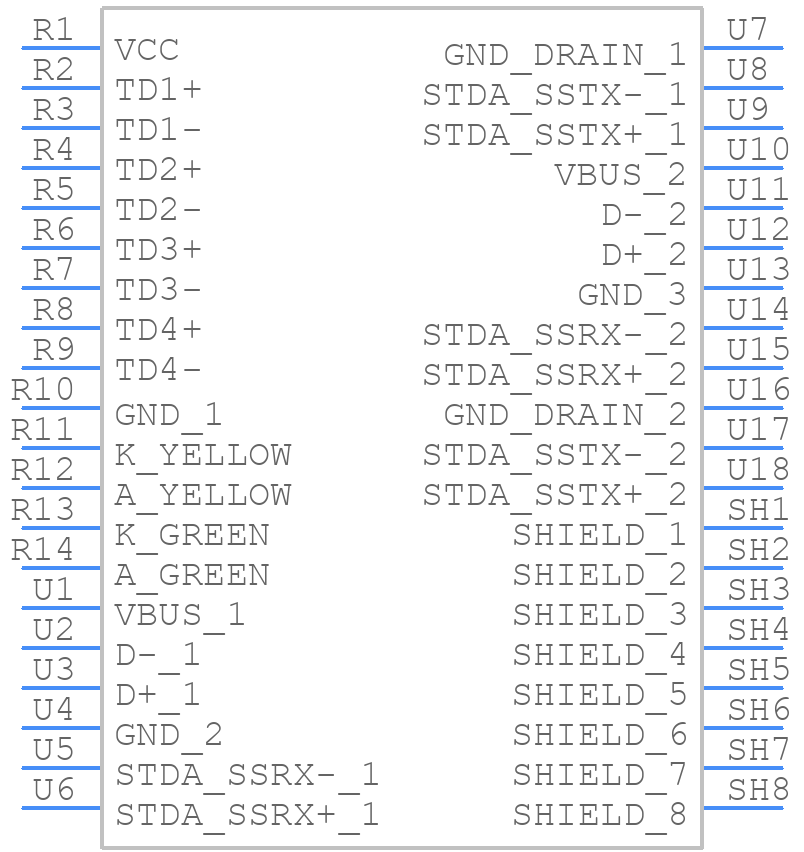

SRJ101252010 - Summit Electronics - PCB symbol

PCB Footprints

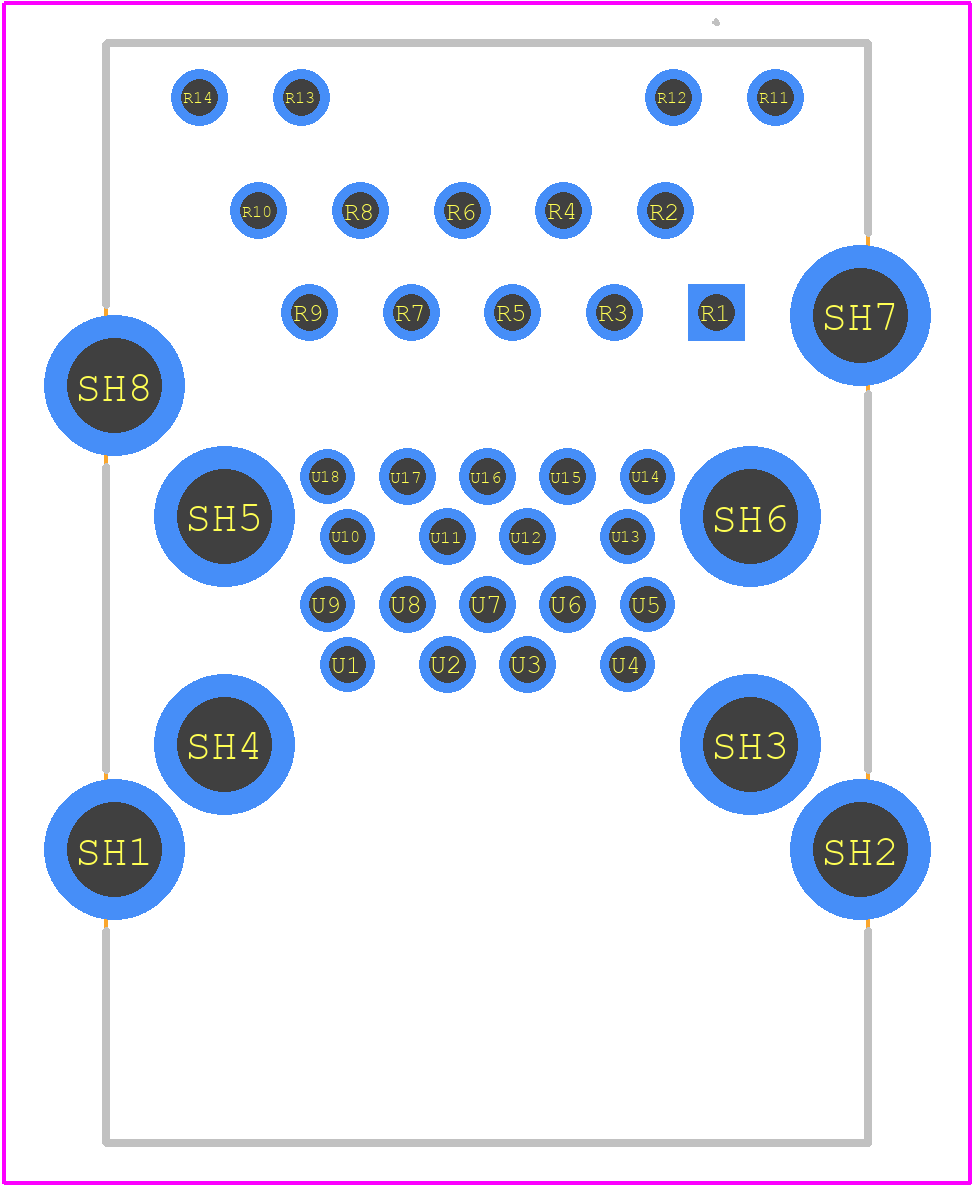

SRJ101252010 - Summit Electronics PCB footprint - Other - Other - SRJ101252010-4

3D Models

SRJ101252010 - Summit Electronics - 3D model - Other - SRJ101252010-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for SRJ101252010
Part Number SRJ101252010
Manufacturer Summit Electronics
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - SRJ101252010-4
Released Date May 23, 2026
Last Modified Date May 23, 2026 1:28 PM UTC
Pinout / Pin List Click Here (Member Only)

SRJ101252010 Details

Manufacturer Part Number:
SRJ101252010
Manufacturer:
(Of No Interest)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SRJ101252010 Overview

Use the download button to access the SRJ101252010 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SRJ10, or try a keyword search, such as Rotary Switches
