SRK1001 - STMicroelectronics

Description: Adaptive synchronous rectification controller for flyback converter

Download SRK1001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

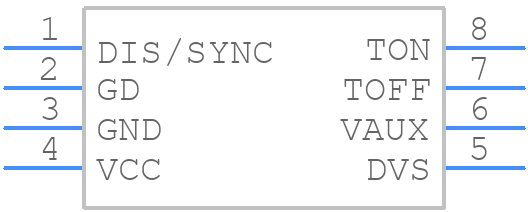

SRK1001 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SRK1001 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_2022
click to zoom
3D Models
SRK1001 - STMicroelectronics - 3D model - Small Outline Packages - SO-8_2022
click to zoom

SRK1001 Details

  • Manufacturer Part Number:

    SRK1001

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    3.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Min:

    2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    300 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SRK1001 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The SRK1001 is a highly configurable device, and the configuration for different wireless protocols (e.g., Bluetooth, Zigbee, etc.) is done through the use of external resistors and capacitors, as well as software configuration using the STMicroelectronics-provided SDK.
  • The maximum transmit power of the SRK1001 is +20 dBm, but this can be adjusted through software configuration to comply with regional regulations and specific application requirements.
  • The SRK1001 has two antenna pins, and antenna diversity can be implemented using external switches and antennas. STMicroelectronics provides guidelines and examples for implementing antenna diversity in the application note AN5323.
  • The power consumption of the SRK1001 varies depending on the operating mode. In transmit mode, the typical current consumption is around 120 mA, while in receive mode it is around 20 mA. In sleep mode, the current consumption is typically in the range of 1-10 μA. See the datasheet for more detailed information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRK1001 Overview

Use the download button to access the SRK1001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRK10, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
