SRK2001 - STMicroelectronics

Description: Adaptive synchronous rectification controller for LLC resonant converter

Download SRK2001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

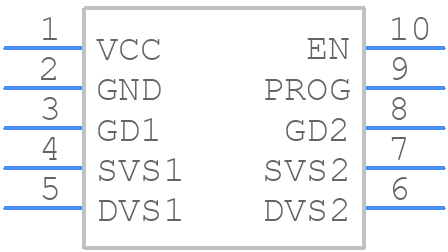

Symbol
SRK2001 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SRK2001 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP10_2022
click to zoom
3D Models
SRK2001 - STMicroelectronics - 3D model - Small Outline Packages - SSOP10_2022
click to zoom

SRK2001 Details

  • Manufacturer Part Number:

    SRK2001

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP 10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    RESONANT CONTROL

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SRK2001 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management.
  • To optimize the SRK2001 for low power consumption, use the low-power mode, reduce the switching frequency, and minimize the output voltage. Additionally, use a high-efficiency inductor and optimize the PCB layout to reduce losses.
  • The maximum ambient temperature for the SRK2001 is 105°C, but it can be derated to 85°C for long-term reliability. It's essential to ensure proper thermal management to prevent overheating.
  • The SRK2001 is designed for an input voltage range of 4.5V to 18V, but it can be used with a different input voltage range with proper design considerations. Consult the datasheet and application notes for guidance on input voltage range modifications.
  • To troubleshoot issues with the SRK2001, start by checking the input voltage, output voltage, and current. Use an oscilloscope to analyze the waveforms and identify any anomalies. Consult the datasheet and application notes for troubleshooting guidelines.
