Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize inductance and noise. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a thermally conductive interface material between the device and the PCB. Additionally, Bourns recommends following the recommended operating temperature range and avoiding exposure to extreme temperatures during storage or handling.
Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum temperature of 217°C (423°F) for a minimum of 90 seconds. It's also essential to follow the recommended soldering techniques and avoid excessive soldering temperatures or times to prevent damage to the device.
Yes, the SRP1770C-220M is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and securing techniques to ensure the device remains securely attached to the PCB. Bourns recommends following the recommended mounting guidelines and considering the use of additional mechanical support or vibration dampening materials if necessary.
To troubleshoot common issues with the SRP1770C-220M, start by verifying the input voltage, current, and temperature are within the recommended operating ranges. Check for proper PCB layout, soldering, and thermal management. Use oscilloscopes or other diagnostic tools to identify any anomalies in the input or output signals. If the issue persists, consult the datasheet or contact Bourns technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1770C-220M Overview

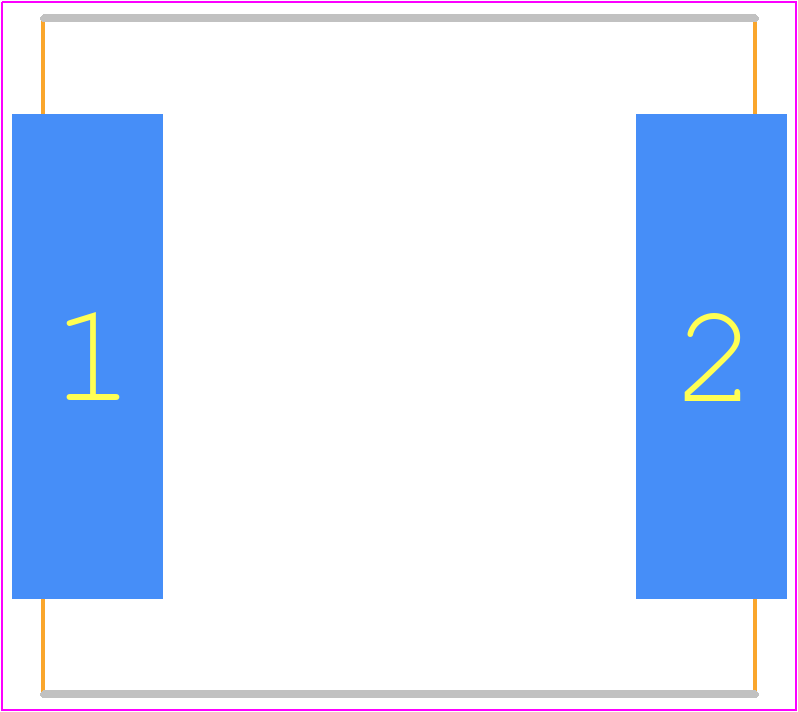

Use the download button to access the SRP1770C-220M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP17,
or try a keyword search, such as Fixed Inductors
