Part Image

SRP1770C-330M - Bourns

Description: Fixed Inductors Ind,17.8x16.9x6.7mm33uH 20%,10.7A,ShdSMD

Download SRP1770C-330M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SRP1770C-330M - Bourns - PCB symbol
click to zoom
PCB Footprints

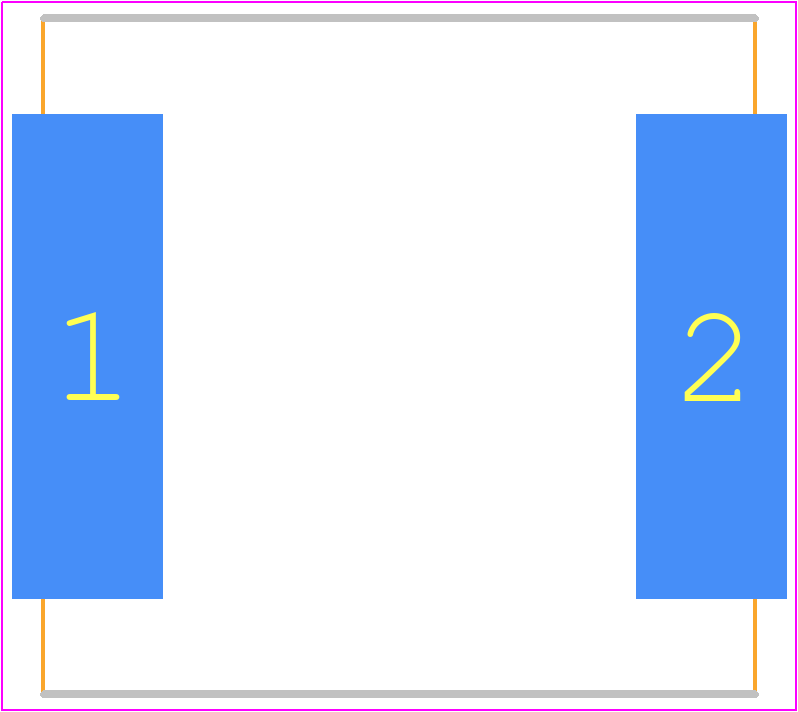

SRP1770C-330M - Bourns PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - SRP1770C
click to zoom
3D Models
SRP1770C-330M - Bourns - 3D model - Inductors Precision Moulded - SRP1770C
click to zoom

SRP1770C-330M Details

  • Manufacturer Part Number:

    SRP1770C-330M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    0

  • Case/Size Code:

    6767

  • Construction:

    Rectangular

  • Core Material:

    POWDERED METAL ALLOY

  • DC Resistance:

    0.042 Ω

  • Inductance-Nom (L):

    33 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    6.7 mm

  • Package Length:

    16.9 mm

  • Package Style:

    SMT

  • Package Width:

    16.9 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    10.7 A

  • Self Resonance Frequency:

    6 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Nickel (Sn/Ni)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

SRP1770C-330M Frequently Asked Questions (FAQs)

  • A recommended PCB layout for the SRP1770C-330M is to use a symmetrical layout with the inductor centered on the PCB, and to keep the inductor away from other components to minimize electromagnetic interference (EMI).
  • To ensure the SRP1770C-330M operates within its specified temperature range, ensure good airflow around the component, avoid overheating due to high current or voltage, and consider using a heat sink if necessary.
  • The recommended soldering profile for the SRP1770C-330M is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
  • Yes, the SRP1770C-330M is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure the component is properly secured to the PCB.
  • To ensure optimal reliability, handle the SRP1770C-330M by the body, avoid touching the leads or core, and store the component in a dry, cool place away from direct sunlight.
