The recommended land pattern for SRP1770C-6R8M can be found in the Bourns Application Note S-8151, which provides guidelines for surface mount assembly and layout considerations.
While the SRP1770C-6R8M is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments. Consult with Bourns' technical support for specific guidance.
To prevent ESD damage, follow proper handling and storage procedures, such as using ESD-safe materials, grounding straps, and ionizers. Bourns recommends following the ESD Association's standard for ESD control (ANSI/ESD S20.20).
Bourns recommends following the IPC/JEDEC J-STD-020D.1 standard for soldering surface mount devices. A typical reflow profile includes a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C.
While the SRP1770C-6R8M is designed to meet the requirements of IPC/JEDEC J-STD-020D.1, it's essential to consider the moisture sensitivity level (MSL) and follow proper handling and storage procedures to prevent moisture-related issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1770C-6R8M Overview

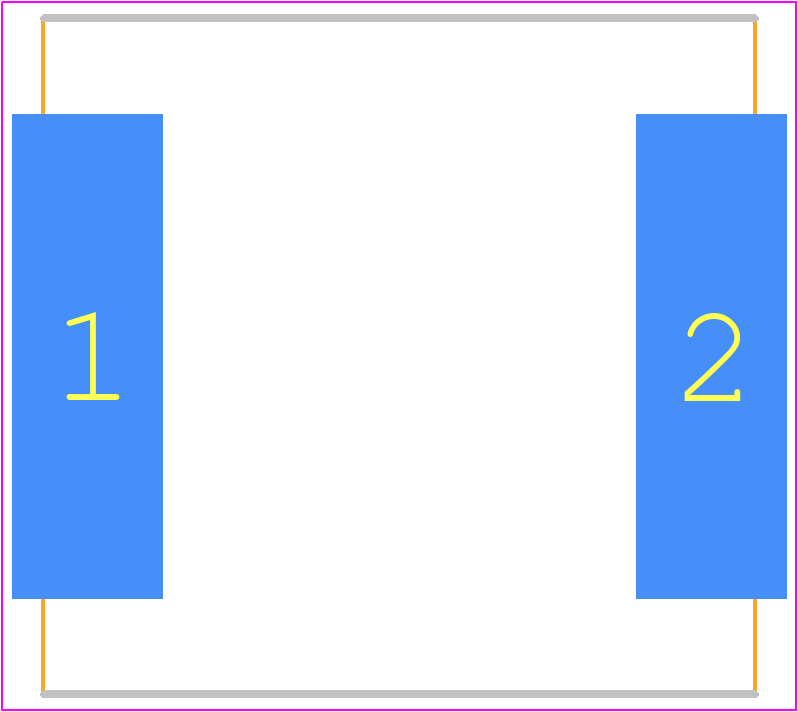

Use the download button to access the SRP1770C-6R8M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP17,
or try a keyword search, such as Fixed Inductors
