The recommended land pattern for SRP1770CC-5R6M can be found in the Bourns Application Note S-8151, which provides detailed guidelines for PCB layout and land pattern design.
While the SRP1770CC-5R6M is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments. Consult with Bourns' technical support for specific guidance.
To prevent ESD damage, follow proper handling and storage procedures, such as using ESD-safe materials, grounding straps, and ionizers. Additionally, consider implementing ESD protection circuits in your design.
Bourns recommends following the JEDEC J-STD-020D.1 standard for soldering profiles, which provides guidelines for temperature, time, and other parameters to ensure reliable solder joints.
While the SRP1770CC-5R6M is designed to operate in a variety of environments, it's essential to consider the moisture sensitivity level (MSL) rating and follow proper handling and storage procedures to prevent moisture-related issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1770CC-5R6M Overview

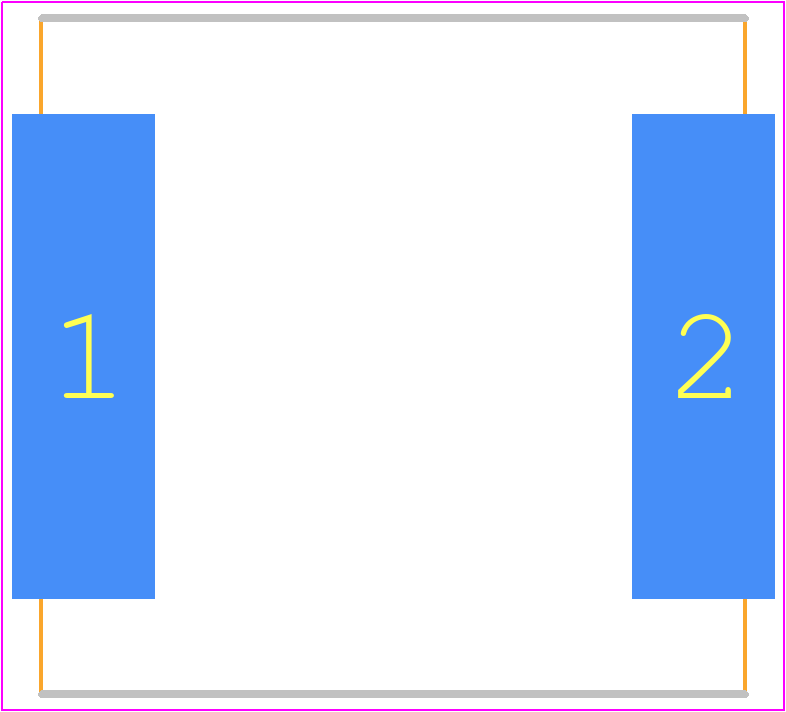

Use the download button to access the SRP1770CC-5R6M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP17,
or try a keyword search, such as Fixed Inductors
