SRP1770TA-8R2M - Bourns

Description: Bourns, SRP1770TA Shielded Wire-wound SMD Inductor with a Carbonyl Powder Core, 8.2 μH Wire-Wound 18A Idc Q:20

Download SRP1770TA-8R2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SRP1770TA-8R2M - Bourns - PCB symbol
click to zoom
PCB Footprints

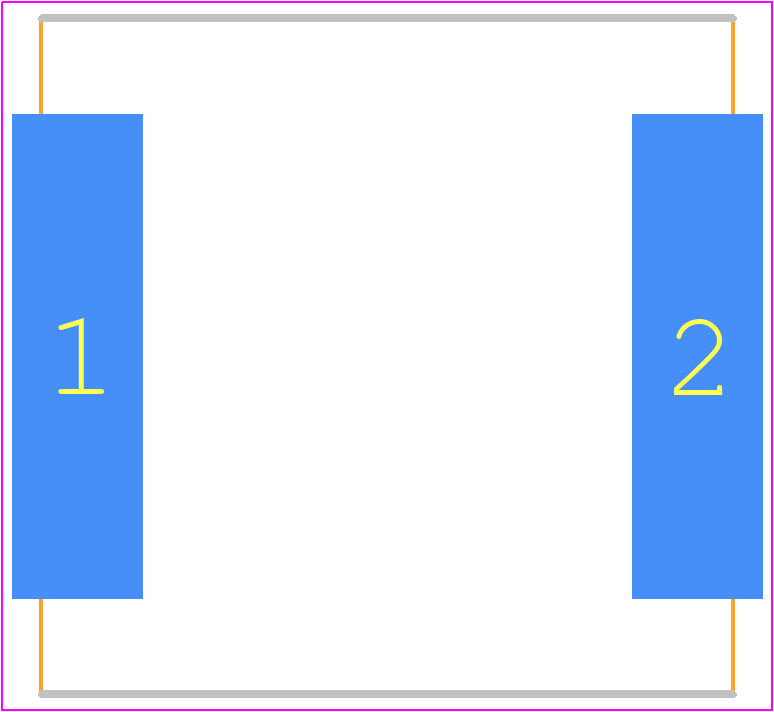

SRP1770TA-8R2M - Bourns PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - 101 1510
click to zoom
3D Models
SRP1770TA-8R2M - Bourns - 3D model - Inductors Precision Moulded - 101 1510
click to zoom

SRP1770TA-8R2M Details

  • Manufacturer Part Number:

    SRP1770TA-8R2M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Case/Size Code:

    6767

  • Construction:

    Rectangular

  • Core Material:

    CARBONYL POWDER

  • DC Resistance:

    0.0108 Ω

  • Inductance-Nom (L):

    8.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    6.7 mm

  • Package Length:

    16.9 mm

  • Package Style:

    SMT

  • Package Width:

    16.9 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    18 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    10 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

SRP1770TA-8R2M Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SRP1770TA-8R2M can be found in the Bourns application note AN204, which provides guidelines for PCB layout and land pattern design.
  • The SRP1770TA-8R2M has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. A thermal pad on the bottom of the device can be connected to a copper plane on the PCB to dissipate heat.
  • The recommended soldering profile for the SRP1770TA-8R2M is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. This profile ensures reliable solder joints and minimizes thermal stress on the device.
  • Yes, the SRP1770TA-8R2M is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent damage or detachment during vibration.
  • The SRP1770TA-8R2M meets various safety certifications, including UL94V-0 and IEC 62133. To ensure compliance, follow the recommended PCB layout and assembly guidelines, and consult with a qualified safety engineer to ensure the device meets the required safety standards for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRP1770TA-8R2M Overview

Use the download button to access the SRP1770TA-8R2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP17, or try a keyword search, such as Fixed Inductors
