Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
To ensure reliability in high-temperature applications, it is recommended to derate the power rating of the SRP7020TA-R68M according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum temperature of 217°C (423°F) for a minimum of 90 seconds. It is also recommended to use a solder with a melting point of 217°C (423°F) or higher.
Yes, the SRP7020TA-R68M is designed to withstand high-vibration environments. However, it is recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mount to further reduce the risk of mechanical failure.
To troubleshoot common issues with the SRP7020TA-R68M, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended specifications. Check for proper thermal management, and ensure that the device is not overheating. Also, verify that the PCB layout and component selection meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP7020TA-R68M Overview

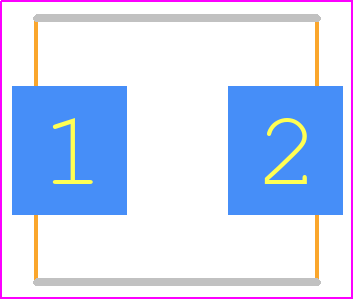

Use the download button to access the SRP7020TA-R68M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP70,
or try a keyword search, such as Fixed Inductors
