The recommended land pattern for SRP7028A-2R2M can be found in the Bourns Application Note S-8151, which provides guidelines for surface mount assembly of the component.
To prevent damage, handle the component by the edges, avoid touching the pads, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
The maximum operating temperature range for SRP7028A-2R2M is -40°C to +125°C, as specified in the datasheet.
Yes, SRP7028A-2R2M is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and soldering to prevent component failure.
Store SRP7028A-2R2M components in a dry, cool place, away from direct sunlight, and in their original packaging or a moisture-proof bag to prevent moisture absorption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP7028A-2R2M Overview

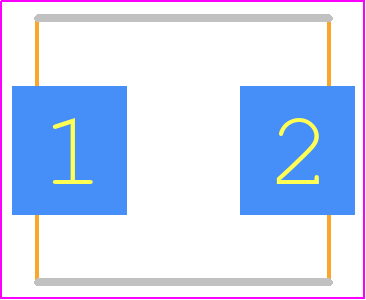

Use the download button to access the SRP7028A-2R2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP70,
or try a keyword search, such as Fixed Inductors
