Bourns provides a recommended PCB layout and land pattern in their application note AN204, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
To handle the high current rating, ensure that your PCB design includes adequate copper thickness, width, and thermal relief to dissipate heat effectively. Additionally, consider using thermal vias and heat sinks to further reduce thermal resistance.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with Bourns' application engineers or refer to their reliability reports for more information.
Yes, the SRR1280A-151K is designed to withstand high-vibration and high-shock environments. However, it's crucial to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. Consult with Bourns' application engineers for specific guidance on your application.
To ensure EMC, follow proper PCB design and layout practices, such as separating high-current and high-frequency signals, using shielding, and implementing filtering and decoupling techniques. Additionally, consult with Bourns' application engineers or refer to their EMC guidelines for specific recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRR1280A-151K Overview

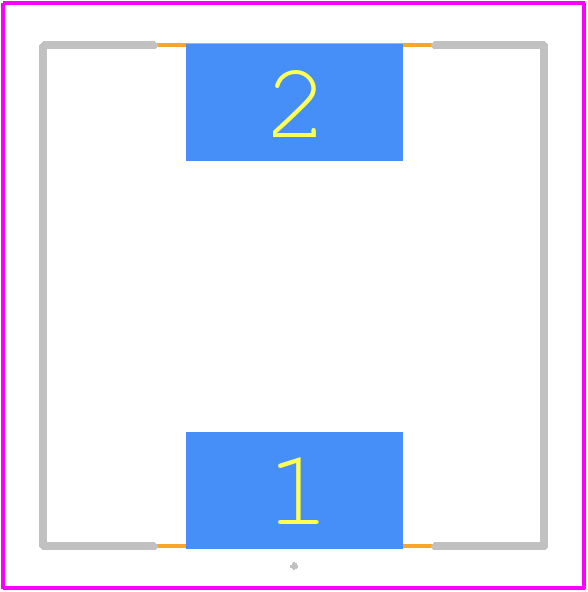

Use the download button to access the SRR1280A-151K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRR12,
or try a keyword search, such as Fixed Inductors
