SRR1280A-6R8Y - Bourns

Description: 6.8 µH Shielded Inductor 7.6 A 18.5mOhm Max Nonstandard

Download SRR1280A-6R8Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SRR1280A-6R8Y - Bourns - PCB symbol
click to zoom
PCB Footprints

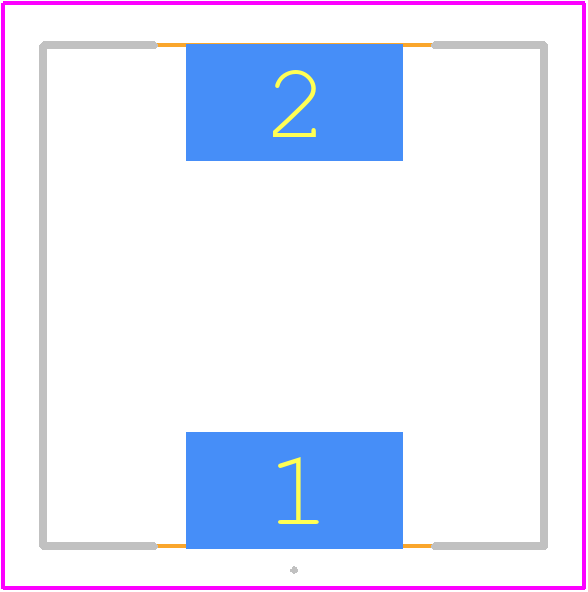

SRR1280A-6R8Y - Bourns PCB footprint - Other - Other - SRR1280A-6R8Y-2
click to zoom
3D Models
SRR1280A-6R8Y - Bourns - 3D model - Other - SRR1280A-6R8Y-2
click to zoom

SRR1280A-6R8Y Details

  • Manufacturer Part Number:

    SRR1280A-6R8Y

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.7

  • Case/Size Code:

    4949

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0185 Ω

  • Inductance-Nom (L):

    6.8 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    7.5 mm

  • Package Length:

    12.5 mm

  • Package Style:

    SMT

  • Package Width:

    12.5 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    7.6 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    22 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

SRR1280A-6R8Y Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SRR1280A-6R8Y can be found in the Bourns Application Note S-8151, which provides guidelines for PCB layout and land pattern design.
  • While the SRR1280A-6R8Y is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments.
  • To prevent damage, handle the SRR1280A-6R8Y by the body, avoid touching the leads or components, and use ESD protection measures such as wrist straps or mats during assembly.
  • The ESR of the SRR1280A-6R8Y is not explicitly stated in the datasheet, but it can be estimated to be around 0.1 ohms based on the component's internal construction and materials.
  • The SRR1280A-6R8Y is designed to withstand moderate vibration levels, but it's essential to consider the specific vibration profile and frequency range of the application to ensure reliable operation.
