SRRM254700 - ALPS Electric

Description: Switch Rotary DP5T 5 Round Shaft PC Pins 0.25A 30VDC T/R

Download SRRM254700 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SRRM254700 model

Email notifications will be applied after download.

Send part feedback

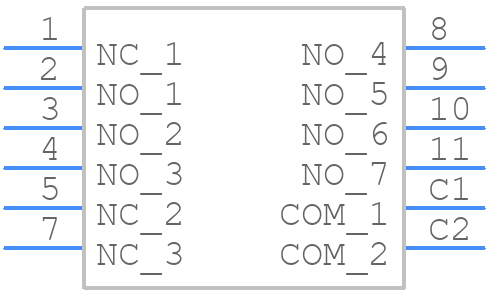

Symbol

SRRM254700 - ALPS Electric - PCB symbol

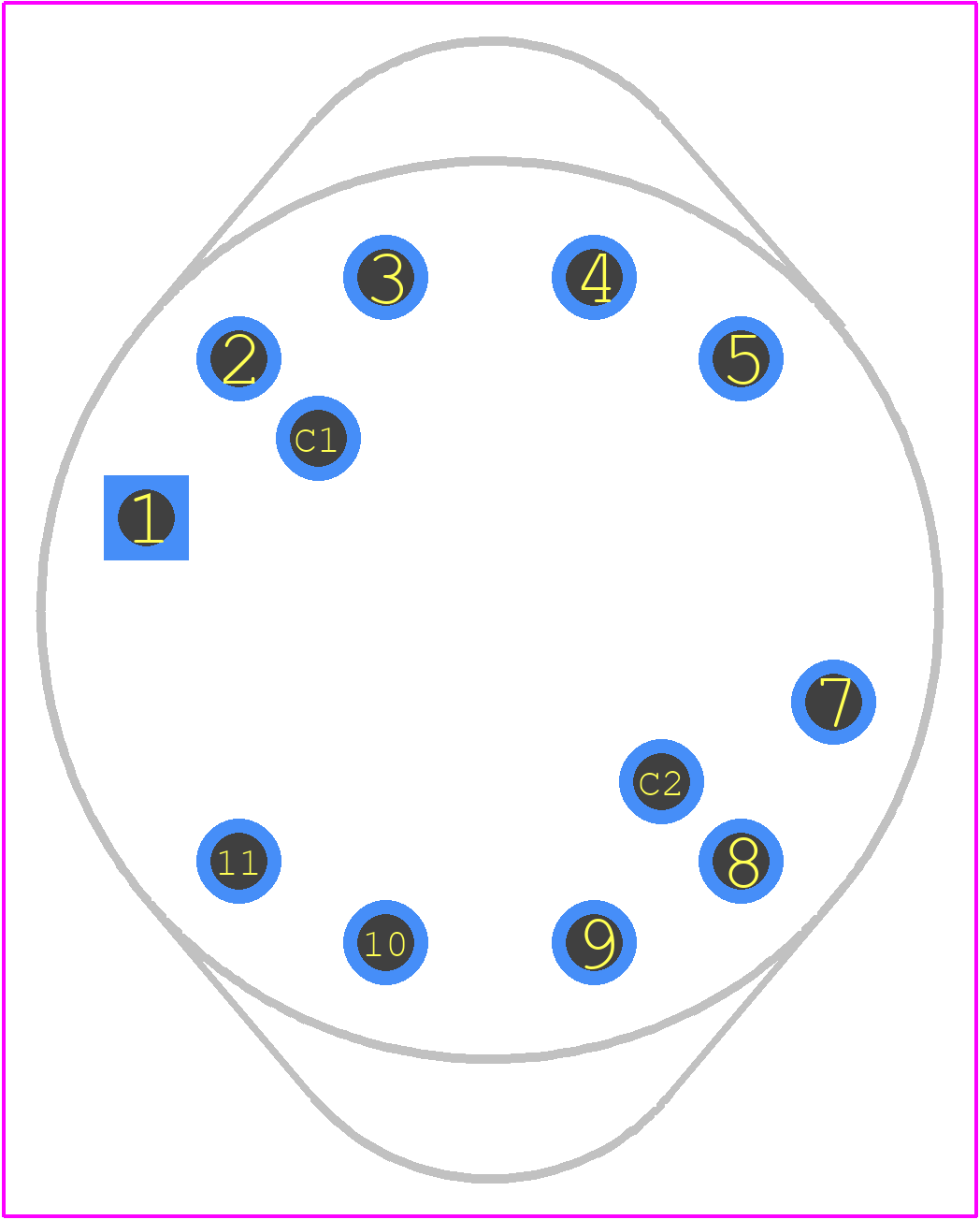

PCB Footprints

SRRM254700 - ALPS Electric PCB footprint - Other - Other - SRRM254700

Datasheet Download Datasheet
Stock & Prices Price & Stock for SRRM254700
Part Number SRRM254700
Manufacturer ALPS Electric
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - SRRM254700
Released Date Aug 6, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)
