SRS-0505 - Mean Well

Description: 0.5W DC-DC Regulated Single Output Converter

Download SRS-0505 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

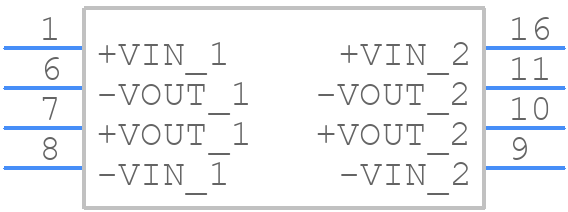

SRS-0505 - Mean Well - PCB symbol
click to zoom
PCB Footprints
SRS-0505 - Mean Well PCB footprint - Other - Other - SRS-0505-2
click to zoom
3D Models
SRS-0505 - Mean Well - 3D model - Other - SRS-0505-2
click to zoom

SRS-0505 Details

  • Manufacturer Part Number:

    SRS-0505

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    22.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.4 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    0.5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.9 mm

SRS-0505 Frequently Asked Questions (FAQs)

  • The maximum capacitive load for the SRS-0505 is 10uF. Exceeding this value may cause instability or oscillation.
  • While the SRS-0505 is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
  • The SRS-0505 meets various safety certifications, including UL, CE, and IEC. Ensure you follow the recommended layout and component selection guidelines to maintain these certifications.
  • The recommended input fuse rating for the SRS-0505 is 1A slow-blow or 2A fast-acting fuse, depending on the specific application and input voltage.
  • No, it's not recommended to parallel multiple SRS-0505 modules to increase the output power. Instead, consider using a higher-power module or a different power supply solution.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRS-0505 Overview

Use the download button to access the SRS-0505 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRS-0, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
