SRS-2405 - Mean Well

Description: Isolated DC/DC Converters 0.5W 5V/0-100mA W/EMI FILTER

Download SRS-2405 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

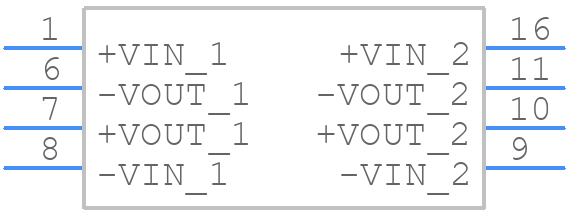

Symbol
SRS-2405 - Mean Well - PCB symbol
click to zoom
PCB Footprints
SRS-2405 - Mean Well PCB footprint - Other - Other - SRS-2405-1
click to zoom
3D Models
SRS-2405 - Mean Well - 3D model - Other - SRS-2405-1
click to zoom

SRS-2405 Details

  • Manufacturer Part Number:

    SRS-2405

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    26.4 V

  • Input Voltage-Min:

    21.6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    22.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.4 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    0.5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.9 mm

SRS-2405 Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the SRS-2405 is 50°C, but it can be derated to 40°C for convection cooling and 30°C for natural convection.
  • Yes, the SRS-2405 is designed to operate in a relative humidity of 20% to 90% non-condensing. However, it's recommended to take precautions to prevent condensation and ensure good airflow around the power supply.
  • The hold-up time for the SRS-2405 is approximately 16ms at 230Vac input and full load. This means that the power supply can maintain its output voltage for 16ms in the event of an input power failure.
  • Yes, the SRS-2405 can be paralleled for higher power, but it's recommended to use a master-slave configuration to ensure stable operation. Mean Well provides a parallel operation guide that should be followed for proper implementation.
  • The MTBF for the SRS-2405 is approximately 550,000 hours at 25°C ambient temperature, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SRS-2405 Overview

Use the download button to access the SRS-2405 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRS-2, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
