SS-132-S-2 - SAMTEC

Description: 32 Position, .100" Single Row Screw Machine Socket Strip

Download SS-132-S-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

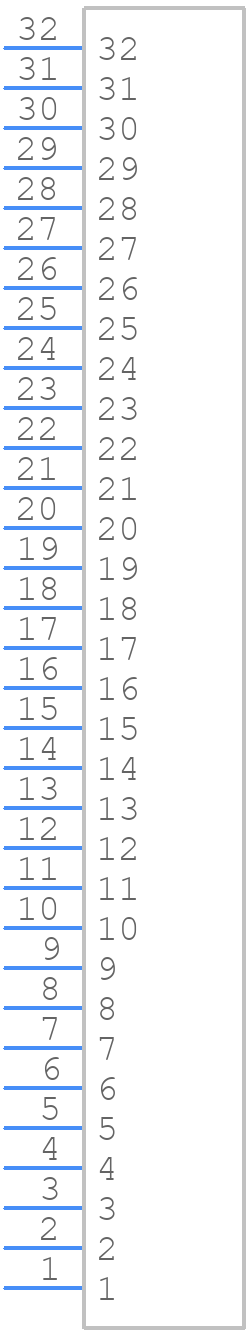

SS-132-S-2 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

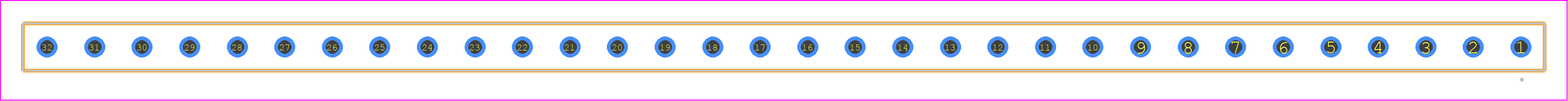

SS-132-S-2 - SAMTEC PCB footprint - Other - Other - SS-132-XX-2
click to zoom
3D Models
SS-132-S-2 - SAMTEC - 3D model - Other - SS-132-XX-2
click to zoom

SS-132-S-2 Details

  • Manufacturer Part Number:

    SS-132-S-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.1 inch

  • Body Length:

    3.2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Style:

    RND PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER
