SS-132-T-2 - SAMTEC

Description: 32 Position, .100" Single Row Screw Machine Socket Strip

Download SS-132-T-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

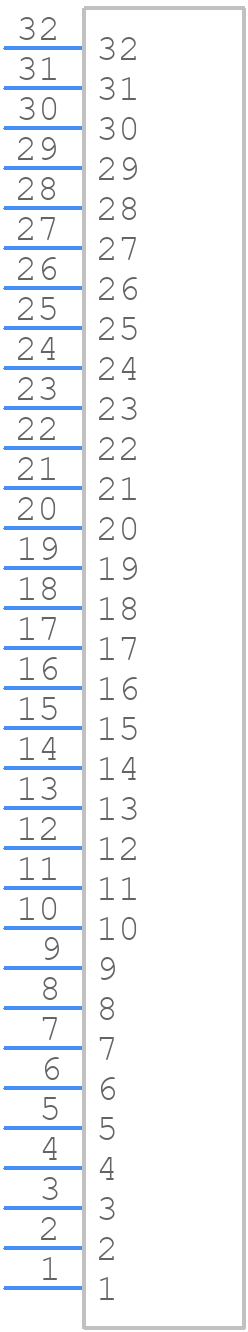

SS-132-T-2 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

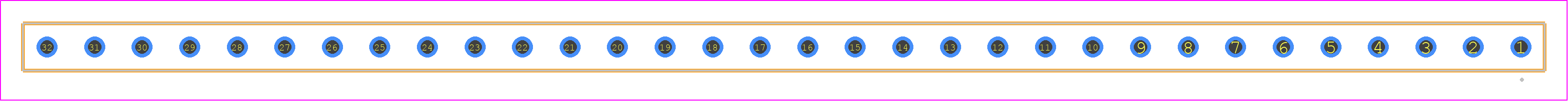

SS-132-T-2 - SAMTEC PCB footprint - Other - Other - SS-132-XX-2
click to zoom
3D Models
SS-132-T-2 - SAMTEC - 3D model - Other - SS-132-XX-2
click to zoom

SS-132-T-2 Details

  • Manufacturer Part Number:

    SS-132-T-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.1 inch

  • Body Length:

    3.2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Style:

    RND PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

SS-132-T-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the SS-132-T-2 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the SS-132-T-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 2 vibration standard.
  • Yes, the SS-132-T-2 connector is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10 seconds.
  • The operating temperature range for the SS-132-T-2 connector is -55°C to 125°C (-65°F to 257°F).
  • The SS-132-T-2 connector is not designed for use in humid or wet environments. It is recommended to use a connector with a higher IP rating (e.g., IP67 or higher) for such applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SS-132-T-2 Overview

Use the download button to access the SS-132-T-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS-13, or try a keyword search, such as Sockets and Chip Carriers
