SS-132-TT-2 - SAMTEC

Description: Samtec, SS 2.54mm Pitch 32 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination

Download SS-132-TT-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SS-132-TT-2 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

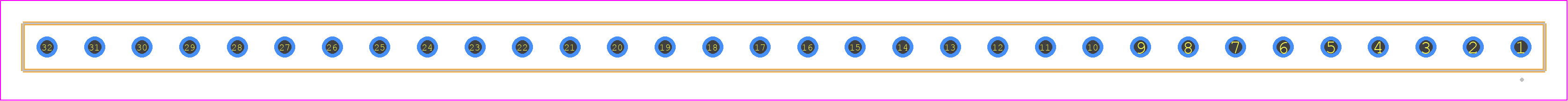

SS-132-TT-2 - SAMTEC PCB footprint - Other - Other - SS-132-XX-2
click to zoom
3D Models
SS-132-TT-2 - SAMTEC - 3D model - Other - SS-132-XX-2
click to zoom

SS-132-TT-2 Details

  • Manufacturer Part Number:

    SS-132-TT-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.1 inch

  • Body Length:

    3.2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Style:

    RND PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

SS-132-TT-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the SS-132-TT-2 is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the SS-132-TT-2 is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application guidance.
  • The maximum operating temperature for the SS-132-TT-2 is 125°C (257°F).
  • Yes, the SS-132-TT-2 is compatible with lead-free soldering processes. Samtec recommends following the IPC J-STD-020D standard for lead-free soldering.
  • The SS-132-TT-2 is designed to operate in a variety of environments, but it's recommended to consult with a Samtec representative for specific guidance on using the product in harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SS-132-TT-2 Overview

Use the download button to access the SS-132-TT-2 schematic symbol, PCB footprint, and 3D model.
