SS-73100-028 - BelFuse

SS-73100-028 Details

• Manufacturer Part Number:

  SS-73100-028

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Bel Fuse

• Additional Feature:

  16 PORT, 8 POSITION EACH

• Board Mounting Option:

  COMPLIANT BOARDLOCK & PEGS

• Body Breadth:

  1.063 inch

• Body Depth:

  1.103 inch

• Body Length:

  4.606 inch

• Body/Shell Style:

  JACK

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  15 mΩ

• Contact Style:

  TELCOM, MODULAR

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Material:

  POLYETHYLENE

• MIL Conformance:

  NO

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number of Ports:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

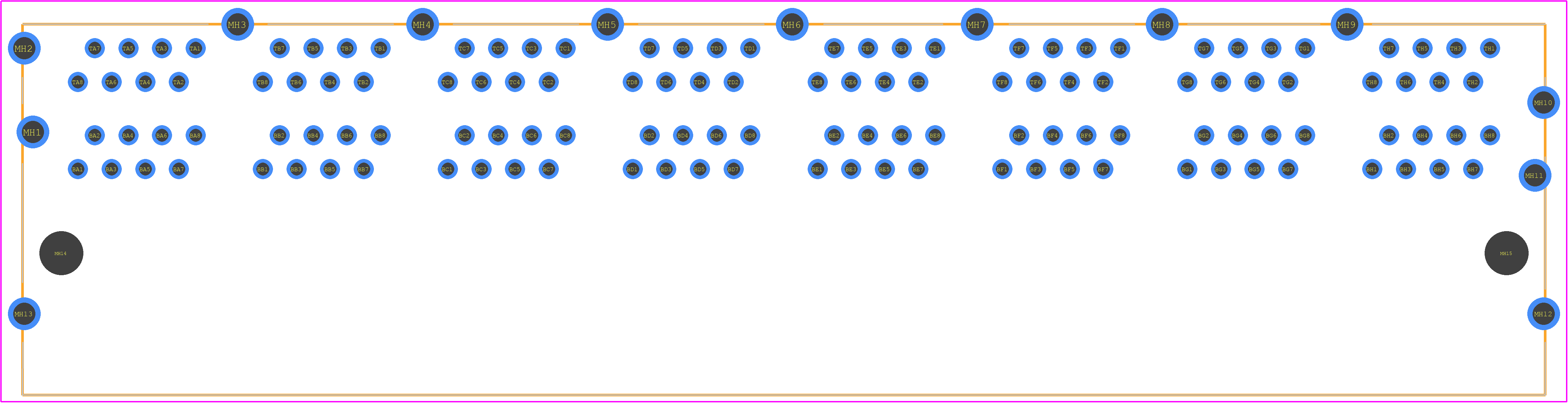

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  CSA, UL

• Shell Finish:

  NICKEL/TIN

• Shell Material:

  COPPER ALLOY

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  128

• UL Flammability Code:

  94V-0
