SS-74800-144 - BelFuse

Description: RJ45 CONN, CAT5/5E, 8P8C, JACK, 1PORT; Modular Connector Type:RJ45 Jack; Port Configuration:1 x 1 (Port); No. of Positions / Loaded Contacts (per Port):8P8C; LAN Category:Cat5, Cat5e; IP Rating:-; Connector Orientation:Right Angle

Download SS-74800-144 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

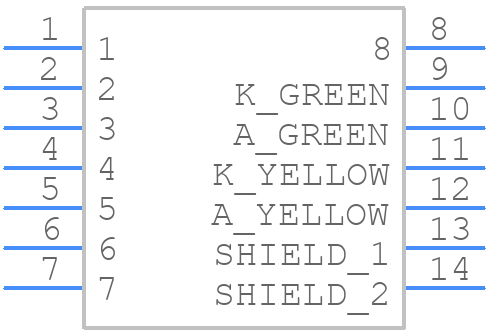

Symbol
SS-74800-144 - BelFuse - PCB symbol
click to zoom

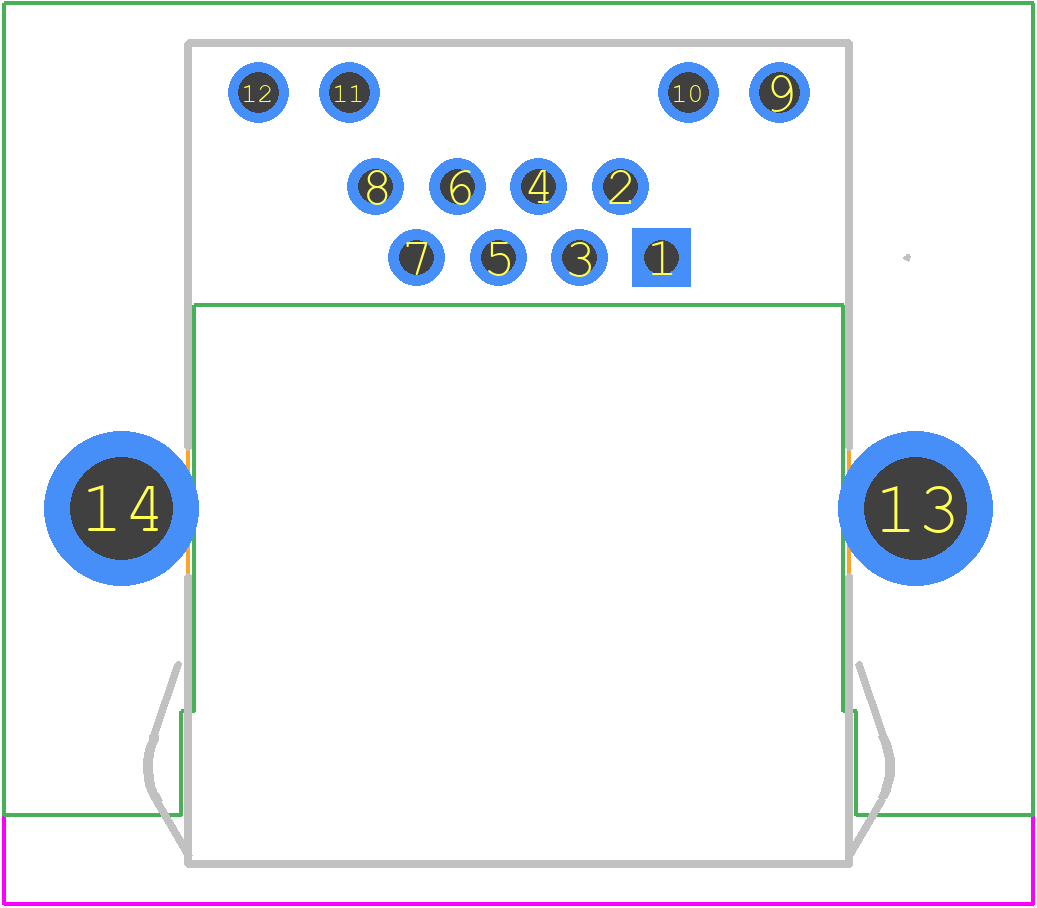

PCB Footprints
SS-74800-144 - BelFuse PCB footprint - Other - Other - SS-74800-144-3
click to zoom
3D Models
SS-74800-144 - BelFuse - 3D model - Other - SS-74800-144-3
click to zoom

SS-74800-144 Details

  • Manufacturer Part Number:

    SS-74800-144

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Bel Fuse

  • Connector Type:

    RJ CONNECTOR

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SS-74800-144 Overview

Use the download button to access the SS-74800-144 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS-74, or try a keyword search, such as Telecom and Datacom Connectors
