Bel Fuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper heat dissipation, reduce thermal resistance, and prevent electrical noise.
To avoid cold solder joints, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Ensure the fuse is properly aligned and seated on the PCB before soldering. Use a soldering technique that minimizes the time the iron is in contact with the fuse.
While the datasheet provides general specifications, the fuse's behavior under high-frequency or high-voltage conditions may not be explicitly stated. Consult with Bel Fuse's application engineers or refer to their technical notes for guidance on using the SS60000-010G in such applications.
The SS60000-010G is a commercial-grade fuse, and its use in high-reliability or safety-critical applications may require additional testing, validation, or certification. Consult with Bel Fuse's technical support or a qualified reliability engineer to determine the fuse's suitability for such applications.
The operating temperature range of the SS60000-010G is specified in the datasheet, but the actual temperature range may vary depending on the application's thermal environment. Use thermal simulation tools or consult with a thermal engineer to determine the fuse's operating temperature range in your specific application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS60000-010G Overview

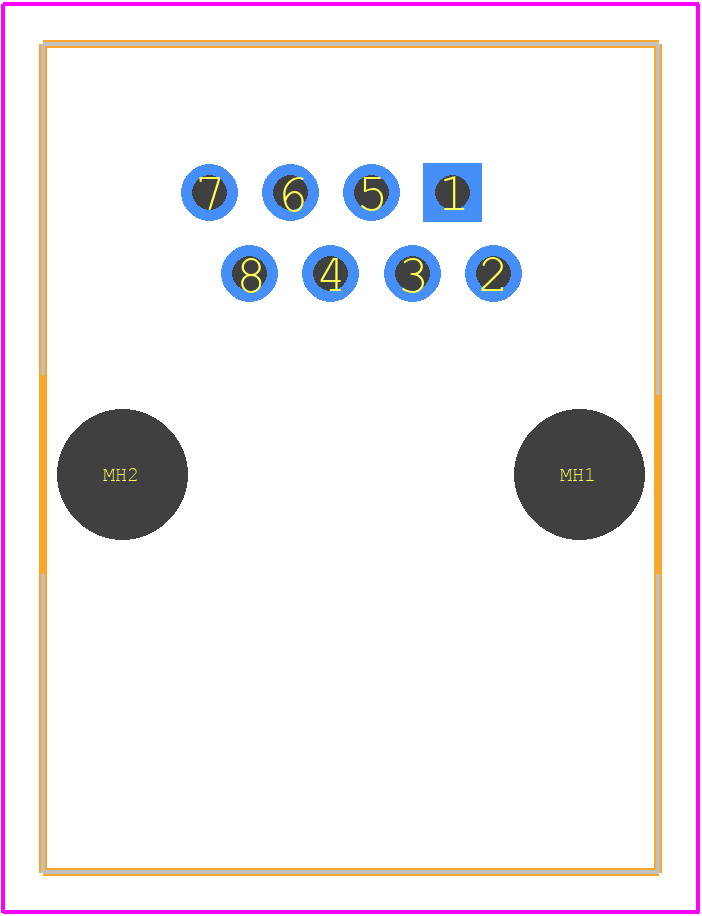

Use the download button to access the SS60000-010G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS600,
or try a keyword search, such as Telecom and Datacom Connectors
