SS65100-024F - BelFuse

Description: 8 contact, 10 position, vertical mount shielded jack, non-flanged

Download SS65100-024F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SS65100-024F - BelFuse - PCB symbol
click to zoom
PCB Footprints

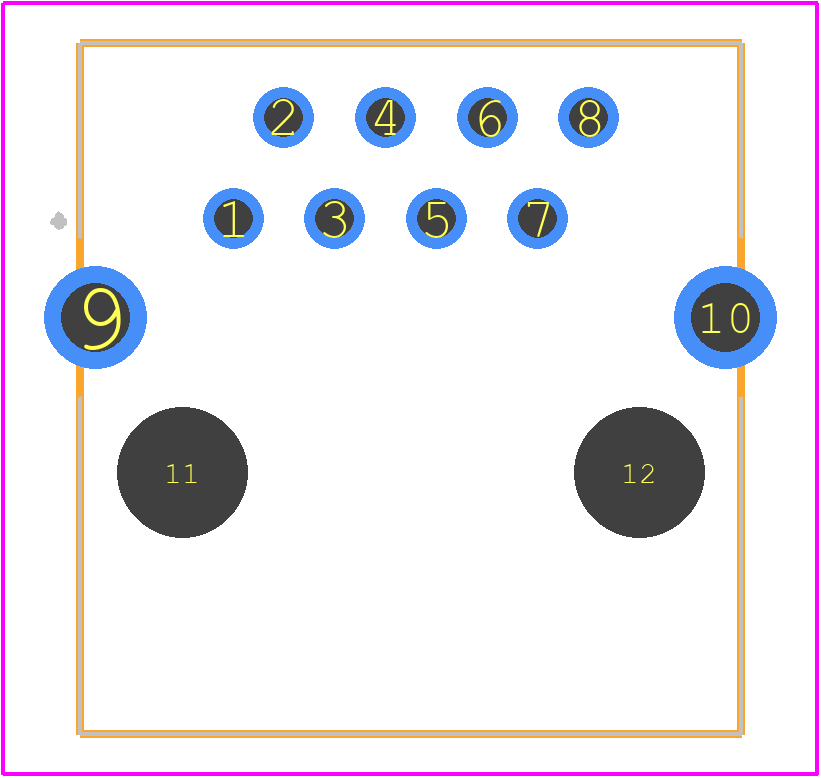

SS65100-024F - BelFuse PCB footprint - Other - Other - SS65100-024F
click to zoom
3D Models
SS65100-024F - BelFuse - 3D model - Other - SS65100-024F
click to zoom

SS65100-024F Details

  • Manufacturer Part Number:

    SS65100-024F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Bel Fuse

  • YTEOL:

    8

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.65 inch

  • Body Depth:

    0.68 inch

  • Body Length:

    0.68 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL/TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

SS65100-024F Frequently Asked Questions (FAQs)

  • Bel Fuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal performance, reduce thermal resistance, and prevent overheating.
  • To select the correct fuse, consider factors such as the maximum current, voltage, and power rating of your circuit. You should also consider the fuse's interrupting rating, melting I²t, and cold resistance. Bel Fuse provides a fuse selection guide or calculator to help with this process.
  • The derating curve for the SS65100-024F is typically provided in the datasheet or application notes. It shows the maximum allowable current at different ambient temperatures. If you can't find it, contact Bel Fuse's technical support for more information.
  • The SS65100-024F is designed to meet certain vibration and shock standards, but it's essential to check the datasheet or contact Bel Fuse's technical support to ensure it meets your specific application requirements.
  • Bel Fuse provides a recommended soldering profile in their application notes or datasheet. It's crucial to follow this profile to prevent damage to the fuse during the soldering process.
