SSA-LXH1025GD footprint, schematic symbol and 3D model by Lumex

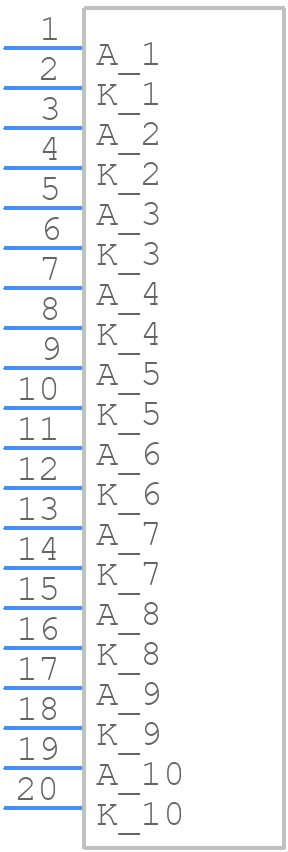

Symbol

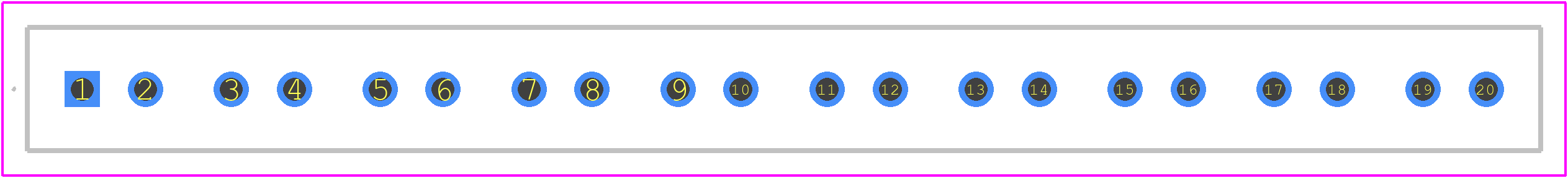

PCB Footprints

3D Models

SSA-LXH1025GD Details

The recommended operating temperature range for the SSA-LXH1025GD is -40°C to 85°C.
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point above 217°C. Also, make sure the PCB is designed with a suitable thermal pad and solder mask to prevent thermal damage.
The maximum forward current rating for the SSA-LXH1025GD is 30mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
To prevent ESD damage, handle the LED with anti-static wrist straps, mats, or bags. Also, ensure that the PCB and assembly process are ESD-compliant.
Store the SSA-LXH1025GD in a dry, cool place with a relative humidity below 60%. Avoid exposing the LED to direct sunlight, moisture, or extreme temperatures.

Community Provided

System Verified

Community Approved

Use the download button to access the SSA-LXH1025GD schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SSA-L, or try a keyword search, such as Visible LEDs
