SSA-LXH1025ID - Lumex

Description: LED Bars and Arrays 10-Seg Array Red 635nm, 10mcd

Download SSA-LXH1025ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

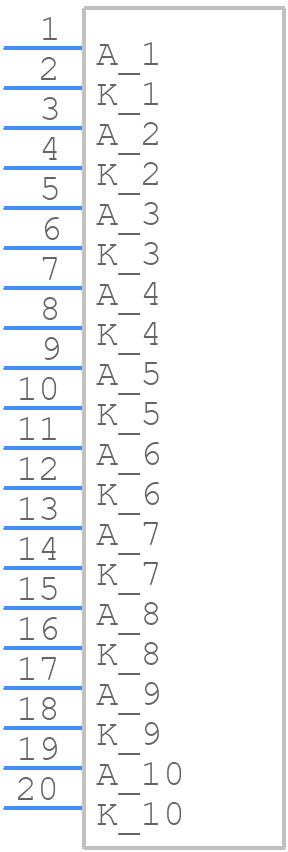

Symbol
SSA-LXH1025ID - Lumex - PCB symbol
click to zoom

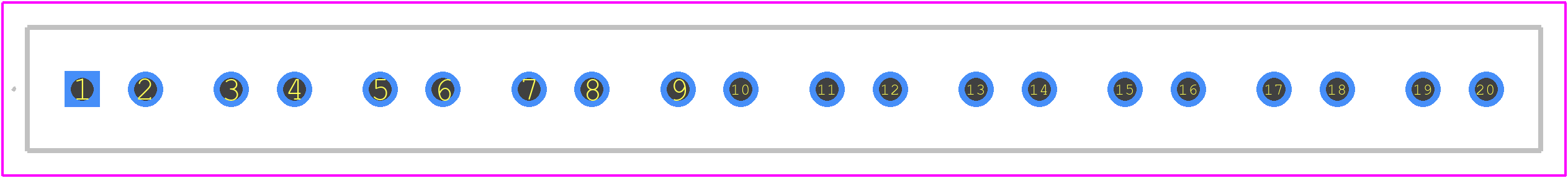

PCB Footprints
SSA-LXH1025ID - Lumex PCB footprint - Other - Other - SSA-LXH1025ID-1
click to zoom
3D Models
SSA-LXH1025ID - Lumex - 3D model - Other - SSA-LXH1025ID-1
click to zoom

SSA-LXH1025ID Details

  • Manufacturer Part Number:

    SSA-LXH1025ID

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    HIGH INTENSITY RED

  • Configuration:

    SEPARATE, 10 ELEMENTS WITH BUILT-IN RESISTOR

  • Forward Current-Max:

    0.025 A

  • Lens Type:

    DIFFUSED RED

  • Luminous Intensity-Nom:

    10.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    10 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    635 nm

  • Shape:

    RECTANGULAR

  • Size:

    5 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    110 deg

SSA-LXH1025ID Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SSA-LXH1025ID is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
  • The SSA-LXH1025ID uses a serial interface, specifically a 4-wire SPI interface, to communicate with the microcontroller.
  • The typical current consumption of the SSA-LXH1025ID is around 20mA, but this can vary depending on the brightness setting and the number of LEDs enabled.
  • Yes, the SSA-LXH1025ID supports PWM (Pulse-Width Modulation) dimming, allowing you to adjust the brightness of the LEDs.
  • The viewing angle of the SSA-LXH1025ID is approximately 120°, making it suitable for a wide range of applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSA-LXH1025ID Overview

Use the download button to access the SSA-LXH1025ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSA-L, or try a keyword search, such as Visible LEDs
