SSA-LXH1025YD footprint, schematic symbol and 3D model by Lumex

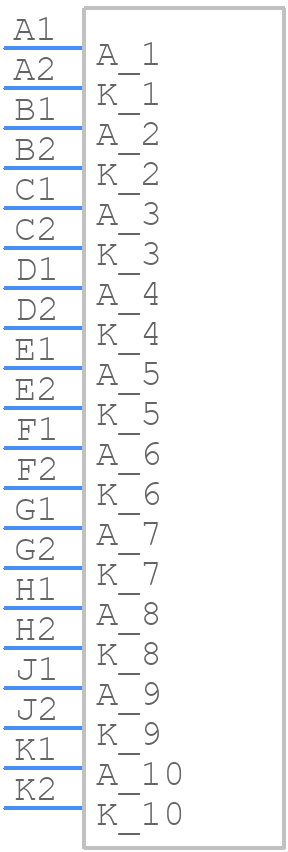

Symbol

PCB Footprints

3D Models

SSA-LXH1025YD Details

The recommended operating temperature range for the SSA-LXH1025YD is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
To prevent damage, handle the LED module by the edges or the frame, avoiding direct contact with the LED chips or wire bonds. Use anti-static wrist straps or mats, and avoid bending or flexing the module.
The recommended soldering temperature is 260°C (max) for 3 seconds (max) using a soldering iron, or 240°C (max) for 10 seconds (max) using a reflow oven.
While the SSA-LXH1025YD is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from moisture and environmental factors. Consult with ITW Lumex for specific guidance.
The typical lifespan of the SSA-LXH1025YD is 50,000 hours or more, depending on operating conditions and usage.

Community Provided

System Verified

Community Approved

Use the download button to access the SSA-LXH1025YD schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SSA-L, or try a keyword search, such as Visible LEDs
