SSA-LXH1225GD - Lumex

Description: Uni-Color LED Light Bar Green 565nm 12-Pin

Download SSA-LXH1225GD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

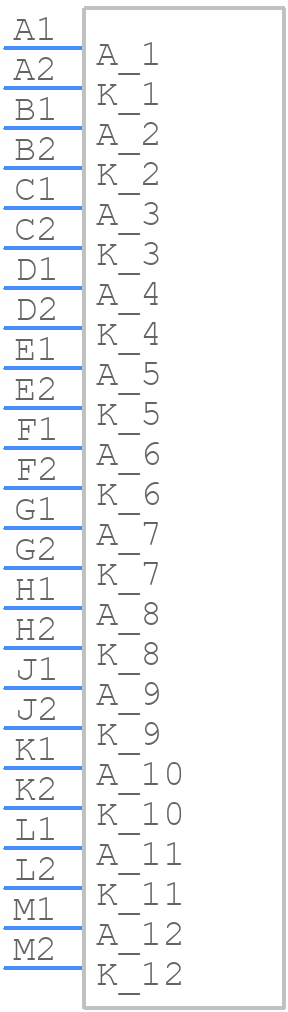

Symbol
SSA-LXH1225GD - Lumex - PCB symbol
click to zoom
PCB Footprints
SSA-LXH1225GD - Lumex PCB footprint - Other - Other - SSA-LXH1225GD-1
click to zoom
3D Models
SSA-LXH1225GD - Lumex - 3D model - Other - SSA-LXH1225GD-1
click to zoom

SSA-LXH1225GD Details

  • Manufacturer Part Number:

    SSA-LXH1225GD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 12 ELEMENTS WITH BUILT-IN RESISTOR

  • Forward Current-Max:

    0.025 A

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    10.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    12

  • Number of LEDs in Array:

    10

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    10 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    5.1 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    110 deg

SSA-LXH1225GD Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SSA-LXH1225GD is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
  • The SSA-LXH1225GD uses a serial interface, specifically a 4-wire SPI interface, to communicate with the microcontroller.
  • The typical current consumption of the SSA-LXH1225GD is around 20mA, but this can vary depending on the display mode and brightness setting.
  • Yes, the SSA-LXH1225GD has a built-in brightness control feature that allows you to adjust the display brightness using the serial interface.
  • The SSA-LXH1225GD is compatible with 5V logic levels, but it can also be used with 3.3V logic levels with the use of a level shifter or voltage regulator.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSA-LXH1225GD Overview

Use the download button to access the SSA-LXH1225GD schematic symbol, PCB footprint, and 3D model.
