- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SSC2016S
- Part Number SSC2016S
- Manufacturer SANKEN ELECTRIC CO.
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC8
- Released Date Jan 5, 2024
- Last Modified Date Jan 5, 2024 7:43 AM UTC
- Pinout / Pin List Click Here (Member Only)
SSC2016S Details
-
Manufacturer Part Number:
SSC2016S
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Sanken Electric Co Ltd
-
Analog IC - Other Type:
POWER FACTOR CONTROLLER
-
Peak Reflow Temperature (Cel):
NOT SPECIFIED
-
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
SSC2016S Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the SSC2016S is -40°C to 150°C.
-
To ensure proper cooling, provide a heat sink with a thermal resistance of 10°C/W or less, and ensure good airflow around the device.
-
Use a multi-layer PCB with a solid ground plane, and keep the power traces as short and wide as possible to minimize inductance and resistance.
-
Yes, but ensure the device is properly sealed and conformal coated to prevent moisture ingress. Follow IPC-J-STD-001 guidelines for moisture-sensitive devices.
-
Handle the device in an ESD-controlled environment, use ESD-protective packaging, and follow proper grounding procedures when handling the device.
Trust Checks
Community Provided
System Verified
Community Approved
SSC2016S Overview

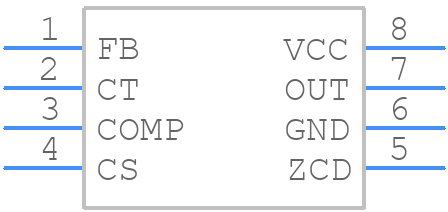

Use the download button to access the SSC2016S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSC20,
or try a keyword search, such as Switching Regulator or Controllers
