SSCDANN006BGAA5 - Honeywell

Description: PRESSURE SENSOR; Operating Pressure Max:6bar; Sensor Output:Analogue; Pressure Measurement Type:Gauge; Voltage Rating:5V; Port Style:Axial; Supply Current:2mA; Product Range:SSC Series; External Depth:10mm; Sensor Interface:PCB MountRoHS Compliant: Yes

Download SSCDANN006BGAA5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

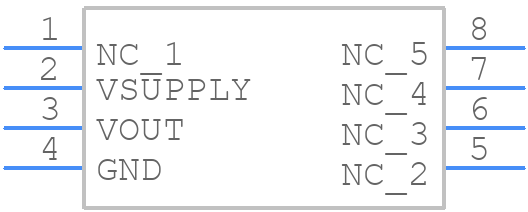

SSCDANN006BGAA5 - Honeywell - PCB symbol
