SSL-LX20R6SRD footprint, schematic symbol and 3D model by Lumex

Symbol

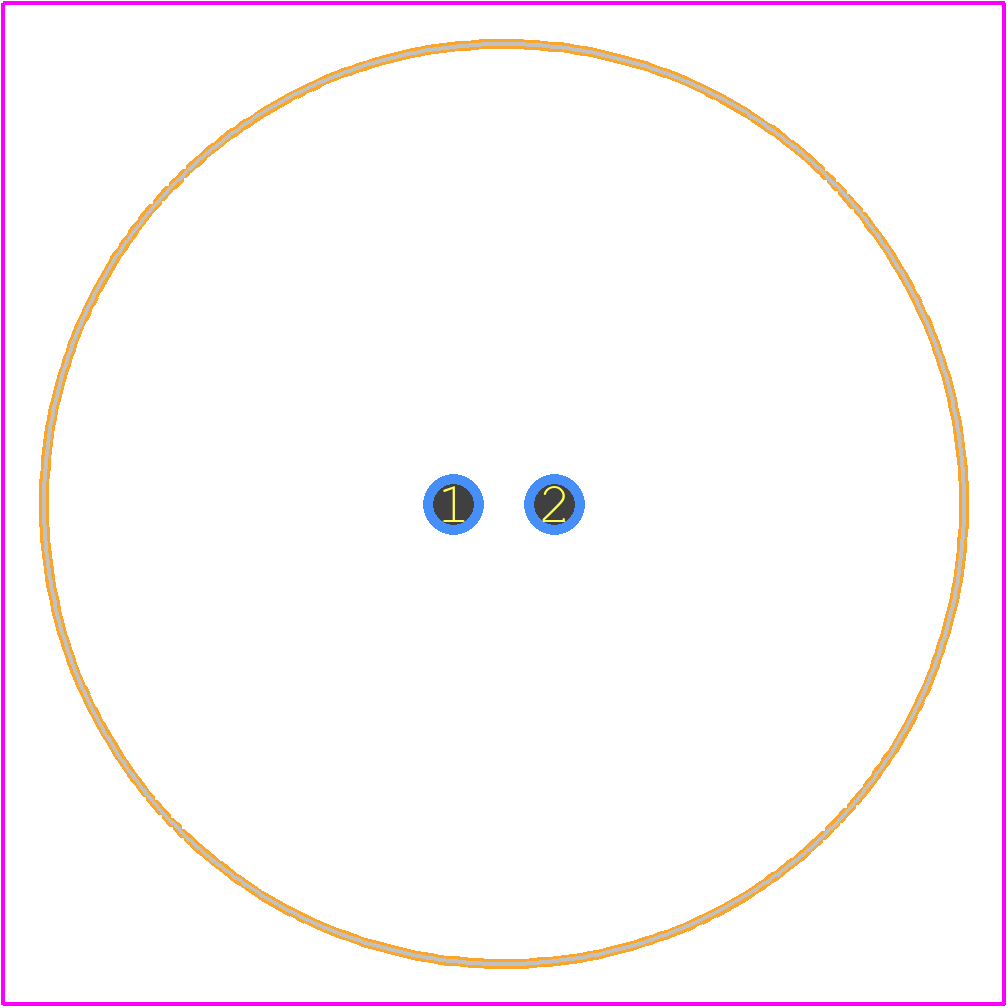

PCB Footprints

3D Models

SSL-LX20R6SRD Details

The recommended operating temperature range is -40°C to 85°C, with a storage temperature range of -40°C to 100°C.
Proper thermal management can be achieved by providing a heat sink or a metal core PCB, and ensuring good airflow around the LED module. The thermal resistance of the module is 10°C/W.
The typical forward voltage of the SSL-LX20R6SRD is 2.1V to 2.5V, depending on the operating current.
No, it's not recommended to drive the SSL-LX20R6SRD with a constant voltage source. Instead, use a constant current source to ensure stable and reliable operation.
The maximum allowable current for the SSL-LX20R6SRD is 700mA. Exceeding this current may reduce the lifespan of the LED module.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SSL-LX20R6SRD schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SSL-L, or try a keyword search, such as LED Displays
