SSM2019BRWZRL - Analog Devices

Description: Microphone Preamplifiers Self Contained Audio Pre-Amplifier

Download SSM2019BRWZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

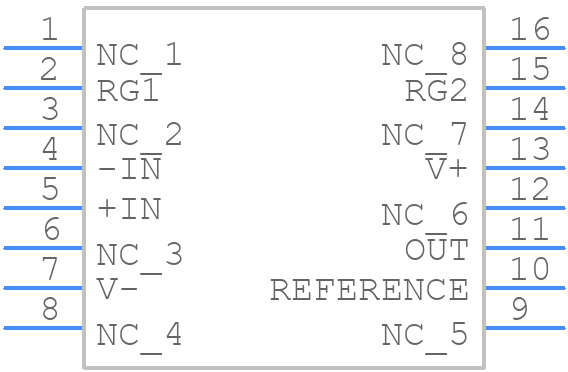

SSM2019BRWZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2019BRWZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
SSM2019BRWZRL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

SSM2019BRWZRL Details

  • Manufacturer Part Number:

    SSM2019BRWZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    200 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.25 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

SSM2019BRWZRL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance and capacitance.
  • The SSM2019BRWZRL requires a specific bias voltage and current to operate optimally. Ensure that the bias voltage is within the recommended range (typically 5V to 15V) and that the bias current is limited to the recommended maximum value (typically 10mA).
  • The maximum power dissipation of the SSM2019BRWZRL is typically around 1.5W. To prevent overheating, ensure good thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources.
  • To troubleshoot issues with the SSM2019BRWZRL, start by verifying the PCB layout and component values, then check the bias voltage and current. Use an oscilloscope to measure the output waveform and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The SSM2019BRWZRL is a commercial-grade device, but Analog Devices offers industrial-grade and automotive-grade versions of the device with enhanced reliability and temperature range. Consult the datasheet and Analog Devices' documentation to determine the suitability of the device for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM2019BRWZRL Overview

Use the download button to access the SSM2019BRWZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM20, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
