SSM2160SZ - Analog Devices

Description: SSM2160SZ, Audio Volume Control Processor 24-Pin SOIC W

Download SSM2160SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

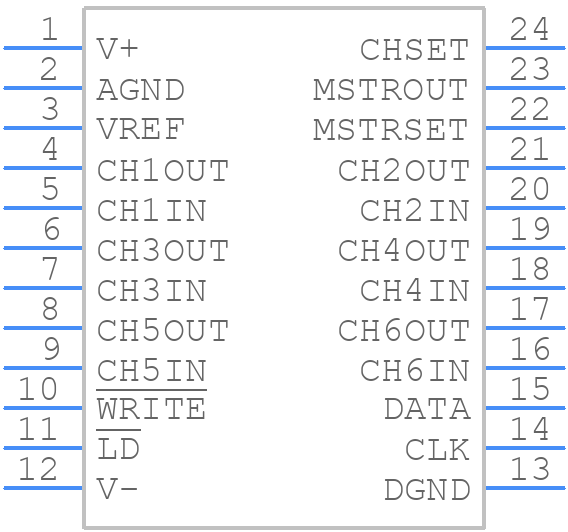

SSM2160SZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2160SZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
SSM2160SZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

SSM2160SZ Details

  • Manufacturer Part Number:

    SSM2160SZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 8V TO 14V SINGLE SUPPLY

  • Channel Separation:

    80 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    0.02%

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    28 mA

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

SSM2160SZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2160SZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To optimize the gain setting, you need to consider the input signal level, desired output level, and the gain range of the SSM2160SZ. A good starting point is to set the gain to the midpoint of the gain range (around 20 dB) and then adjust based on the specific requirements of your application.
  • The recommended power-up sequence for the SSM2160SZ is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
  • To troubleshoot issues with the SSM2160SZ, start by checking the power supply voltages, ensuring that they are within the recommended range. Next, verify that the input signals are within the recommended range and that the gain setting is appropriate. If issues persist, check for PCB layout issues, such as noise coupling or inadequate decoupling, and consider using a scope to visualize the signals.
  • Yes, the SSM2160SZ can be used in a differential input configuration. To do so, connect the non-inverting input (IN+) to the positive input signal and the inverting input (IN-) to the negative input signal. This configuration can help to reject common-mode noise and improve the overall signal-to-noise ratio.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM2160SZ Overview

Use the download button to access the SSM2160SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM21, or try a keyword search, such as Audio Control ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
