SSM2166SZ-REEL - Analog Devices

Description: Audio Amp Microphone 1-CH Mono Class-AB 14-Pin SOIC N T/R

Download SSM2166SZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

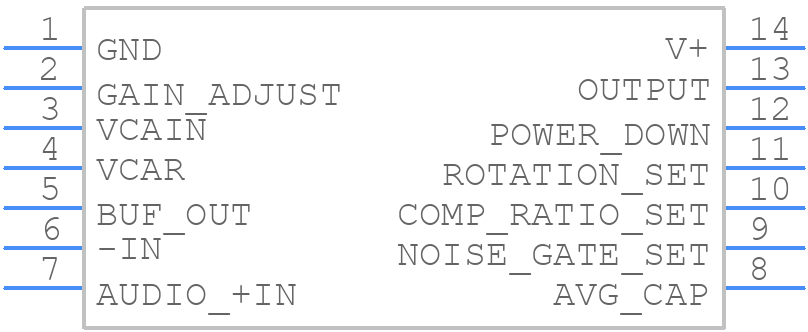

SSM2166SZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2166SZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14
click to zoom
3D Models
SSM2166SZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-14
click to zoom

SSM2166SZ-REEL Details

  • Manufacturer Part Number:

    SSM2166SZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SSM2166SZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2166SZ-REEL involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 4.5V and 5.5V, and the VEE pin to a stable voltage source between -4.5V and -5.5V. The voltage difference between VCC and VEE should not exceed 10V. Also, ensure that the input signals are within the recommended common-mode voltage range.
  • The maximum power dissipation of the SSM2166SZ-REEL is 500mW. To ensure reliable operation, the device should be operated at a junction temperature below 150°C. A thermal pad is available on the package to help dissipate heat.
  • To protect the SSM2166SZ-REEL from ESD, handle the device by the body or use an anti-static wrist strap. Ensure that the PCB and components are properly grounded, and use ESD-protective packaging and storage materials. Avoid touching the device pins or exposing them to static electricity.
  • The recommended operating temperature range for the SSM2166SZ-REEL is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
