SSM2166SZ-REEL7 - Analog Devices

Description: Audio Amp Microphone 1-CH Mono Class-AB 14-Pin SOIC N T/R

Download SSM2166SZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

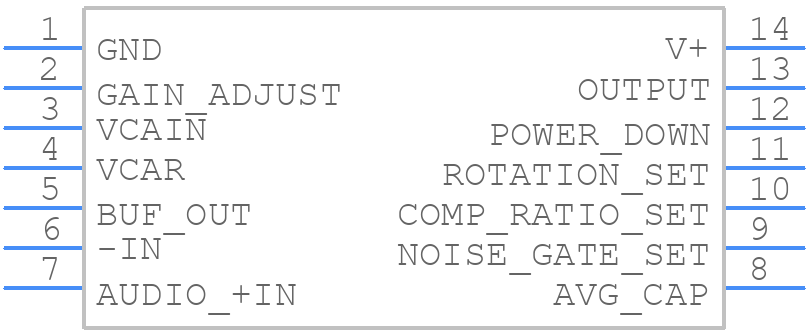

SSM2166SZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2166SZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14
click to zoom
3D Models
SSM2166SZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-14
click to zoom

SSM2166SZ-REEL7 Details

  • Manufacturer Part Number:

    SSM2166SZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SSM2166SZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2166SZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The VEE pin should be connected to a quiet ground or a voltage source that is at least 1V below the VCC voltage. The ISET pin should be connected to a resistor to set the output current.
  • The maximum power dissipation of the SSM2166SZ is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and thermal management. It's essential to ensure proper heat sinking and thermal design to prevent overheating.
  • The SSM2166SZ is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and heat sinking requirements to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the SSM2166SZ, start by verifying the power supply voltages, checking for proper biasing, and ensuring the input and output signals are within the recommended operating ranges. Use an oscilloscope to check for signal integrity and noise. Consult the datasheet and application notes for guidance on troubleshooting common issues.
