- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SSM2166SZ
- Part Number SSM2166SZ
- Manufacturer Analog Devices
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - R-14
- Released Date Jan 11, 2017
- Last Modified Date Jan 22, 2025 3:38 PM UTC
- Pinout / Pin List Click Here (Member Only)
SSM2166SZ Details
-
Manufacturer Part Number:
SSM2166SZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
MS-012AB, SOIC-14
-
Pin Count:
14
-
Manufacturer Package Code:
R-14
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
SSM2166SZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the SSM2166SZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio input and output connectors. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the signal traces as short as possible.
-
To optimize the gain structure of the SSM2166SZ, it's recommended to set the gain of the device to the minimum required for the application, and to use an external resistor network to adjust the gain. Additionally, using a low-noise voltage regulator and decoupling capacitors can help to reduce noise and improve the signal-to-noise ratio.
-
The SSM2166SZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid operating the device at maximum power dissipation for extended periods. Additionally, using a thermal interface material and a heat sink can help to reduce the junction temperature.
-
To troubleshoot common issues with the SSM2166SZ, it's recommended to check the power supply voltage, ensure that the device is properly biased, and verify that the input signal is within the recommended range. Additionally, checking the PCB layout and ensuring that the device is properly decoupled can help to identify and resolve issues with distortion or noise in the output signal.
-
The SSM2166SZ has built-in ESD protection, but it's still recommended to take precautions to prevent electrostatic discharge. This can include using an ESD wrist strap or mat, handling the device by the body rather than the pins, and using ESD-protected packaging and storage materials.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SSM2166SZ Overview

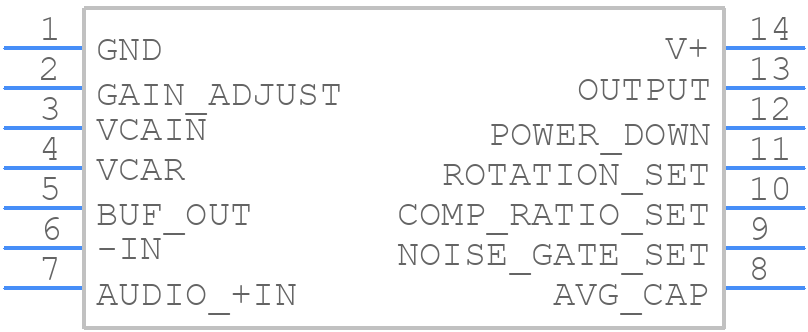

Use the download button to access the SSM2166SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM21,
or try a keyword search, such as Audio/Video Amplifiers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
